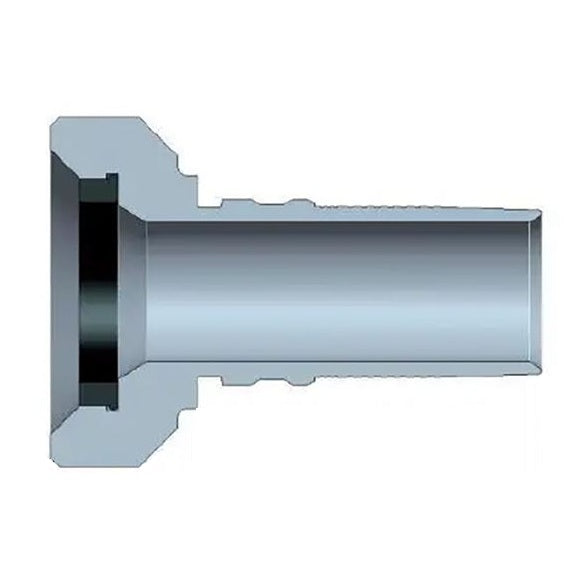

Y-3232-FHUN Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Figure 1502 | -32 Female Hammer Union Integral Fitting with Rubber Ring x -32 Hose ID | Steel

Y-3232-FHUN Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Figure 1502 | -32 Female Hammer Union Integral Fitting with Rubber Ring x -32 Hose ID | Steel

Save $69.36 Save $69.36
$242.76
$242.76 - $242.76
$242.76
$173.40
$173.40 - $173.40
$173.40

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | Figure 1502 | Female Hammer Union Integral Fitting with Rubber Ring x Hose Barb

- Use with Alfabiotech 5000 and Flexor Rig hoses.
Specifications for Variant SKU: Y-3232-FHUN Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series  |   E4K Series  |   E5.5K Series
Male Hammer Union | Fig. 1502 | Integral Fitting with Lug Nut
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
Y-3232-MHUN -32 2" 50.8mm 71.0mm 152mm 13.43 lbs
Female Hammer Union | Fig. 1502 | Integral Fitting With Rubber Ring
Part Number Dash Size Hose ID Size C
Cut-Off
Factor		 L
Overall Length		 Weight
in mm mm mm lbs/each
Y-3232-FHUN -32 2" 50.8mm 67.5mm 148.5mm 4.75 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
