YS1-40 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -40 YS1 Interlock Skive Ferrule | Steel

Name: YS1-40 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -40 YS1 Interlock Skive Ferrule | Steel
Brand: Kuriyama
SKU: YS1-40 Kuriyama
Price: 109.19 USD
Availability: InStock

Save $43.68

$152.87

$152.87 - $152.87

$152.87

$109.19

$109.19 - $109.19

$109.19

Kuriyama of America Inc.

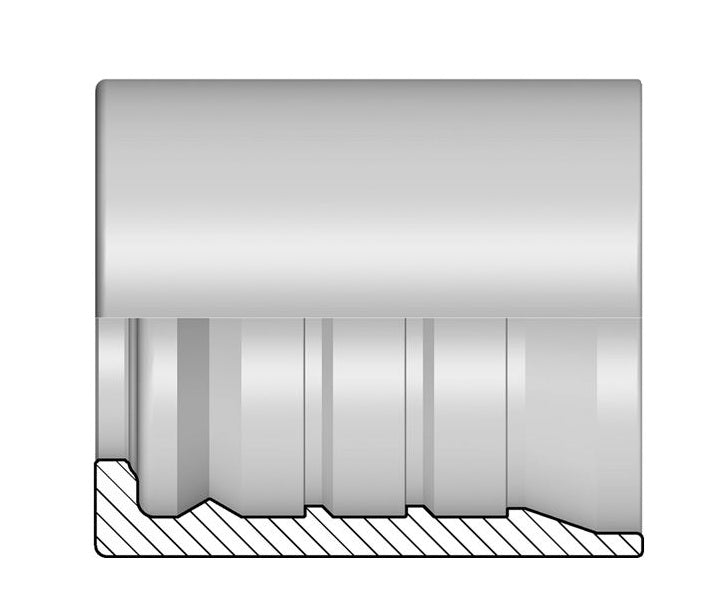

Alfagomma | Y Series | Two-Piece AlfaCrimp Fitting | YS1 Interlock Skive Ferrule

Specifications for Variant SKU: YS1-40 Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Material(s):	Steel
Compatible with the following Series:	E5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Dash Size	Hose ID Size		OD	L Length	Weight
Part Number	Dash Size	in	mm	mm	mm	lbs/each
YS1-10	-10	5/8"	15.9mm	35.5mm	46.0mm	0.26 lbs
YS1-20	-20	1-1/4"	31.8mm	62.0mm	66.0mm	1.10 lbs
YS1-24	-24	1-1/2"	38.1mm	69.5mm	68.0mm	1.39 lbs
YS1-32	-32	2"	50.8mm	88.0mm	79.5mm	2.64 lbs
YS1-40	-40	2-1/2"	63.0mm	102.0mm	110.0mm	3.95 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
