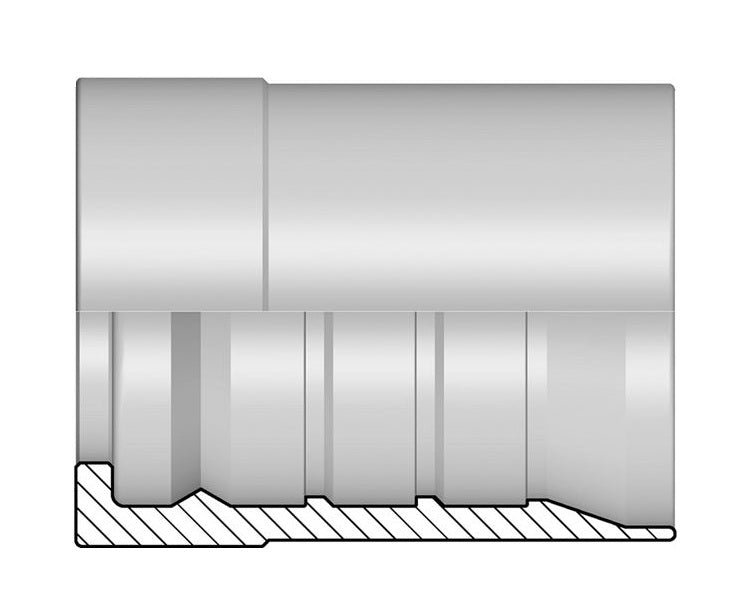

YS2-24 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -24 YS2 Interlock Skive Ferrule | Steel

Name: YS2-24 Alfagomma by Kuriyama | Y Series | Two-Piece AlfaCrimp Hydraulic Hose Fitting | -24 YS2 Interlock Skive Ferrule | Steel
Brand: Kuriyama
SKU: YS2-24 Kuriyama
Price: 31.93 USD
Availability: InStock

Save $12.77

$44.70

$44.70 - $44.70

$44.70

$31.93

$31.93 - $31.93

$31.93

Kuriyama of America Inc.
Alfagomma | Y Series | Two-Piece AlfaCrimp Fitting | YS2 Interlock Skive Ferrule

Specifications for Variant SKU: YS2-24 Kuriyama
Brand:	Alfabiotech Evolution
Series:	Y Series
Material(s):	Steel
Compatible with the following Series:	E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Dash Size	Hose ID Size		OD	L Length	Weight
Part Number	Dash Size	in	mm	mm	mm	lbs/each
YS2-08	-08	1/2"	12.7mm	30.0mm	52.5mm	0.25 lbs
YS2-10	-10	5/8"	15.9mm	34.0mm	57.5mm	0.30 lbs
YS2-12	-12	3/4"	19.0mm	38.0mm	48.7mm	0.27 lbs
YS2-16	-16	1"	25.4mm	46.0mm	55.7mm	0.49 lbs
YS2-20	-20	1-1/4"	31.8mm	55.0mm	66.0mm	0.80 lbs
YS2-24	-24	1-1/2"	38.1mm	62.0mm	68.0mm	0.97 lbs
YS2-32	-32	2"	50.8mm	78.0mm	79.5mm	1.71 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
