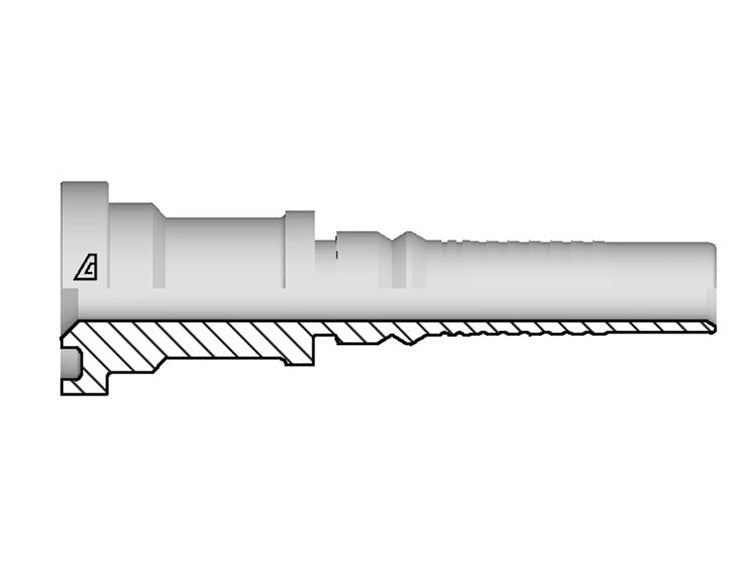

Z-3232-C62S Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -32 Hose ID x -32 Code 62 O-Ring Flange Interlock | Steel

Save $57.76

$202.17

$202.17 - $202.17

$202.17

$144.41

$144.41 - $144.41

$144.41

Kuriyama of America Inc.
Alfagomma | Z Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 O-Ring Flange Interlock

Specifications for Variant SKU: Z-3232-C62S Kuriyama
Brand:	Alfagomma
Series:	Z Series
Shape (Orientation):	Straight
Ends Configuration:	2in Hose Barb, 2in Code 62 Flange
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518

About Z Series Fittings:
Two-piece Interlock insert for Alfatech 6000 (AT6K) in 2" size only. Requires both internal and external skiving and a ZF1 Interlock ferrule to perform properly.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max. Working Pressure	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	PSI	lbs/each
Z-3232-C62S	32	2"	50.8mm	3.13"	79.4mm	104mm	6000 PSI	3.75 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
