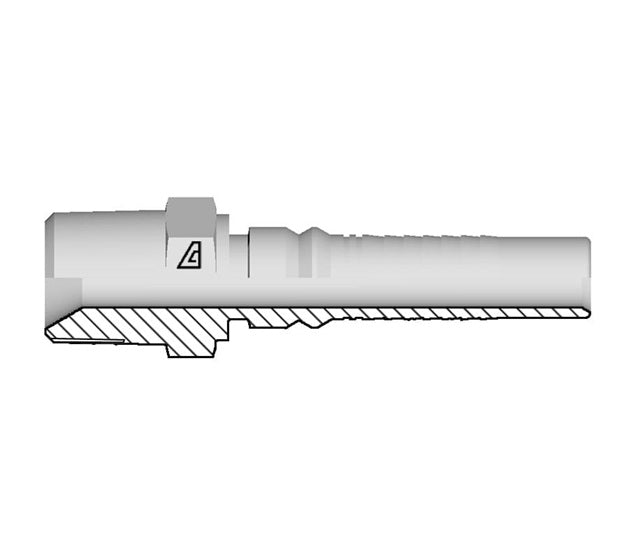

Z-3232-MAPI Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | -32 Hose ID x -32 API Male NPT | Steel

Z-3232-MAPI Alfagomma by Kuriyama | Z Series | Two-Piece Hydraulic Hose Fitting | -32 Hose ID x -32 API Male NPT | Steel

Save $47.44 Save $47.44
$166.05
$166.05 - $166.05
$166.05
$118.61
$118.61 - $118.61
$118.61

Kuriyama of America Inc.
Alfagomma | Z Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x API Male NPT
Specifications for Variant SKU: Z-3232-MAPI Kuriyama
Brand: Alfagomma
Series: Z Series
Shape (Orientation): Straight
Material(s): Steel
About Z Series Fittings:
  • Two-piece Interlock insert for Alfatech 6000 (AT6K) in 2" size only.
  • Requires both internal and external skiving and a ZF1 Interlock ferrule to perform properly.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Size C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash
Size		 Size (in) - TPI (mm) (mm) lbs/each
Z-3232-MAPI 32 2" 50.8mm 32 2 - 11-1/2 114.5mm 65mm 4.50 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
