ZF1-32 Alfagomma by Kuriyama | ZF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule | -32 Hose Dash Size | 2" Hose ID | Steel

Save $44.62

$156.17

$156.17 - $156.17

$156.17

$111.55

$111.55 - $111.55

$111.55

Kuriyama of America Inc.
Alfagomma | ZF1 Series | Two-Piece Hydraulic Hose Fitting | Interlock Skive Ferrule

Specifications for Variant SKU: ZF1-32 Kuriyama
Brand:	Alfagomma
Series:	ZF1 Series
Material(s):	Steel
Compatible with the following Series:	ABT3K Series \| ABT6K Series \| ABT6KST Series \| AT10KOC Series

About ZF1 Series Fittings:

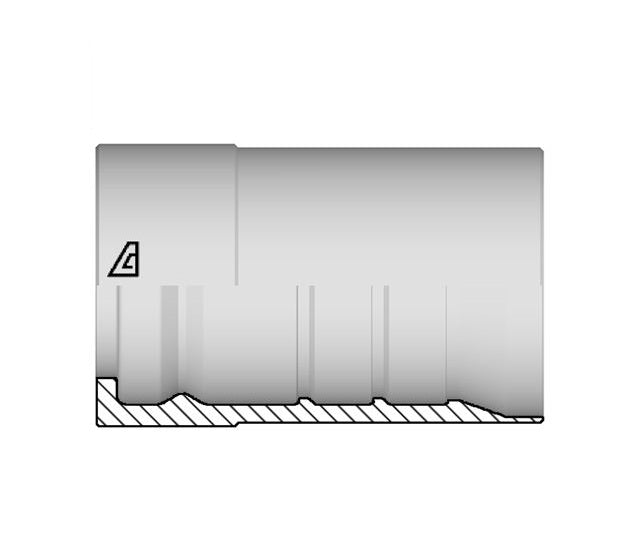

Two piece Interlock ferrule for use with "X" Interlock insert on spiral wire reinforced hoses. Requires internal and external skiving.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			B OD	L Length	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
ZF1-32	32	2"	50.8mm	88mm	108.2mm	3.30 lbs
