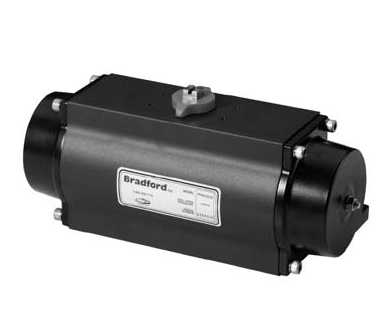

RP-BA-101-SR Dixon Valve RP-BA Series Spring Return Aluminum Rack and Pinion Actuator - 1000 Series - ISO5211 F05 / F07

RP-BA-101-SR Dixon Valve RP-BA Series Spring Return Aluminum Rack and Pinion Actuator - 1000 Series - ISO5211 F05 / F07

Save $351.07 Save $351.07
$877.68
$877.68 - $877.68
$877.68
$526.61
$526.61 - $526.61
$526.61

Dixon Sanitary Fittings
RP-BA Series Spring Return Aluminum Rack and Pinion Actuator
Specifications for Variant SKU: RP-BA-101-SR Dixon
Pneumatic Actuator

RP-BA Series Spring Return Aluminum Rack & Pinion Actuator

Heavy-duty aluminum rack and pinion actuator with spring-return operation, built for reliable quarter-turn valve automation.

1

What are the key specifications?
Bolt Pattern

ISO 5211

Piston & Pinion Lubrication

Shell Darina R2

Rotation Adjustment Range

80° to 100°

Operating Media

Dry or lubricated non-corrosive gas

Operating Pressure

40 to 120 PSI

Maximum Pressure Rating

150 PSI

Temperature Range

-4°F to 200°F

Size Range

40 in. lb. to 16,500 in. lb.

2

What are the main product features?
  • Design — Twin rack & pinion design.
  • Output shaft — Female double square.
  • Body — Extruded hard anodized aluminum alloy provides wear and corrosion resistance and reduced friction.
  • Heavy duty springs — High tensile steel springs with retainer and guide for safe and easy assembly.
  • Pistons — Die-cast aluminum alloy fitted with nylon bushing guides and Buna-N seals.
  • End caps — Epoxy-coated die-cast aluminum alloy for maximum resistance to corrosive environments.
  • Pinion — Electroless nickel plated carbon steel for maximum corrosion and wear resistance.
  • Rotation adjustment — A full ±5° of travel adjustment in the open and closed positions, standard on all sizes.
  • Solenoid interface — International NAMUR solenoid mounting interface is standard on all units.
  • Indicator — A high visibility polyethylene indicator. Open/Close indication is standard on all models.
3

Which options or configurations are available?
Part Number Weight Volume (cm³) Volume (in³) ISO 5211
RP-BA-025-SR 4.21 lbs. 170 10.37 F04
RP-BA-025-SR05 4.21 lbs. 170 10.37 F05
RP-BA-045-SR 5.20 lbs. 324 19.77 F05 / F07
RP-BA-101-SR 11.45 lbs. 708 43.20 F05 / F07
RP-BA-225-SR 22.50 lbs. 1573 95.99 F07 / F10
RP-BA-365-SR 40.55 lbs. 26.73 163.12 F10 / F12
RP-BA-500-SR 57.80 lbs. 3018 184.17 F10 / F12
4

Where can I find product documents?
PDF

RP-BA Series Aluminum Rack and Pinion Actuator Dimensions PDF

See the PDF for full dimensional drawings.

i
Cycle times: Overall cycle time performance will vary greatly for each unit. Cycle times are dependent on air supply, valve torque, line pressure, temperature, and media.
