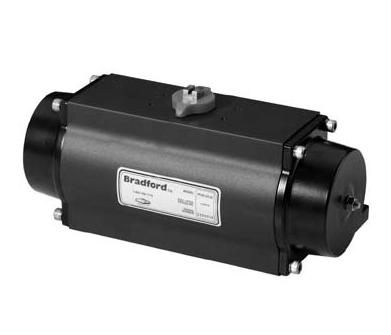

RP-BA-365-SR Dixon Valve RP-BA Series Spring Return Aluminum Rack and Pinion Actuator - 3650 Series - ISO5211 F10 / F12

RP-BA-365-SR Dixon Valve RP-BA Series Spring Return Aluminum Rack and Pinion Actuator - 3650 Series - ISO5211 F10 / F12

Save $65.97 Save $65.97
$1,253.67
$1,253.67 - $1,253.67
$1,253.67
$1,187.70
$1,187.70 - $1,187.70
$1,187.70

Dixon Sanitary Fittings
RP-BA Series Spring Return Aluminum Rack and Pinion Actuator
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: RP-BA-365-SR Dixon
Features and Benefits:
  • Body: extruded hard anodized aluminum alloy provides wear and corrosion resistance and reduced friction.
  • Heavy duty springs: high tensile steel springs with retainer and guide for safe and easy assembly.
  • Pistons: die-cast aluminum alloy fitted with nylon bushing guides and Buna-N seals.
  • End caps: epoxy-coated die-cast aluminum alloy for maximum resistance to corrosive environments.
  • Pinion: Electroless nickel plated carbon steel for maximum corrosion and wear resistance.
  • Rotation adjustment: A full ±5° of travel adjustment in the open and closed positions, standard on all sizes.
  • Solenoid interface: International NAMUR solenoid mounting interface is standard on all units.
  • Indicator: A high visibility polyethylene indicator. Open/Close indication is standard on all models.
  • Tested to 1 million cycles
Specifications:
  • Twin rack & pinion design
  • Female double square output shaft
  • ISO 5211 bolt patterns
  • Piston and pinion lubrication: Shell Darina R2
  • Range of rotation adjustment: 80° to 100°
  • Operating media: dry or lubricated non-corrosive gas
  • Operating pressure: 40 to 120 PSI
  • Maximum pressure rating: 150 PSI
  • Temperature range: -4°F to 200°F
  • Size range: 40 in. lb. 16,500 in. lb.
Cycle Times:
  • Overall cycle time performance will vary greatly for each unit. Cycle times are dependant on air supply, valve torque, line pressure, temperature and media.
Dimensions:
Part Number Weight Volume ISO 5211
cm3 in3
RP-BA-025-SR 4.21 lbs. 170 10.37 F04
RP-BA-025-SR05 4.21 lbs. 170 10.37 F05
RP-BA-045-SR 5.20 lbs. 324 19.77 F05 / F07
RP-BA-101-SR 11.45 lbs. 708 43.20 F05 / F07
RP-BA-225-SR 22.50 lbs. 1573 95.99 F07 / F10
RP-BA-365-SR 40.55 lbs. 26.73 163.12 F10 / F12
RP-BA-500-SR 57.80 lbs. 3018 184.17 F10 / F12
