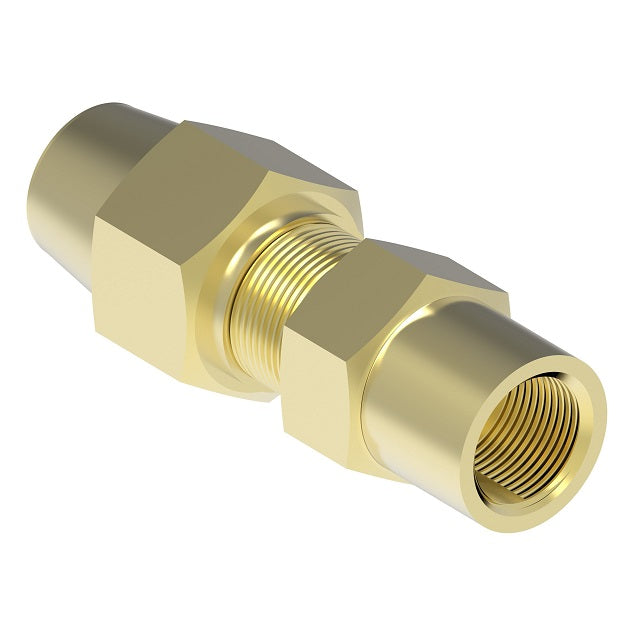

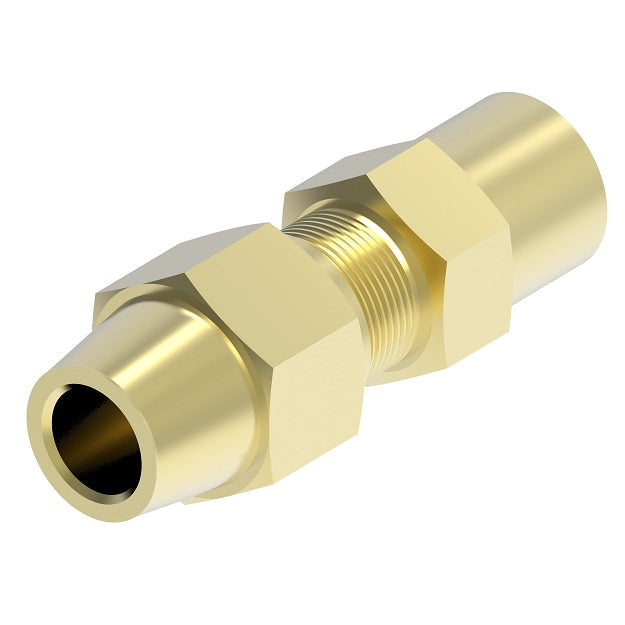

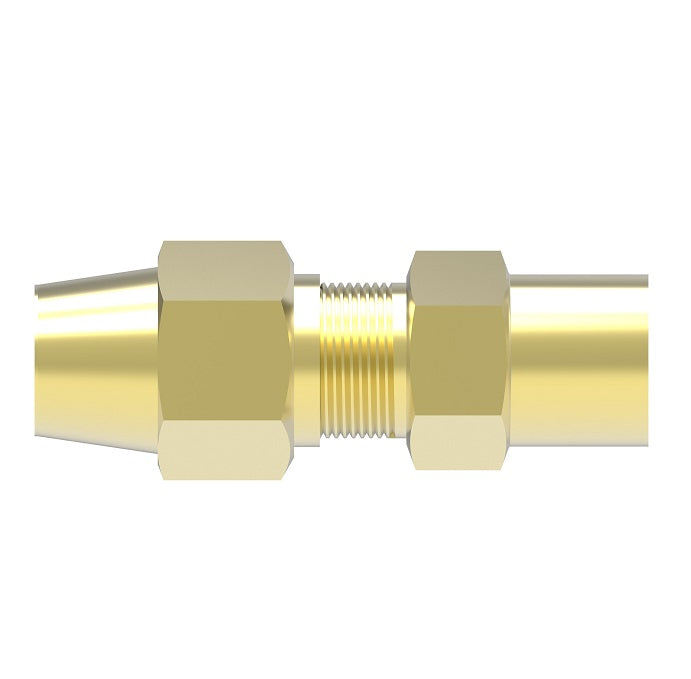

166X4 by Danfoss | Compression Fitting | Female Connector | Long Nut | 1/4" Tube OD x 1/8" Female NPTF | Brass

166X4 by Danfoss | Compression Fitting | Female Connector | Long Nut | 1/4" Tube OD x 1/8" Female NPTF | Brass

$4.46 - $4.46

$4.46

$4.46 - $4.46

$4.46

Aeroquip® by Danfoss
Compression Fitting - Female Connector (with Long Nut)
Compression End x Female NPTF
Straight

Specifications for Variant SKU: 166X4 Danfoss
Ends Configuration:	1/4in Tube Compression, 1/8in Female NPTF
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Low cost. No flaring. Easy to assemble. Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
Ref. SAE No. 060103BA Meets specifications and standards of ASA, ASME and SAE.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	1"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/4-18

Brass Part Number	Tube O.D.	Female Pipe Thread
166X4	1/4"	1/8"
166X4X4	1/4"	1/4"
166X6	3/8"	1/4"
