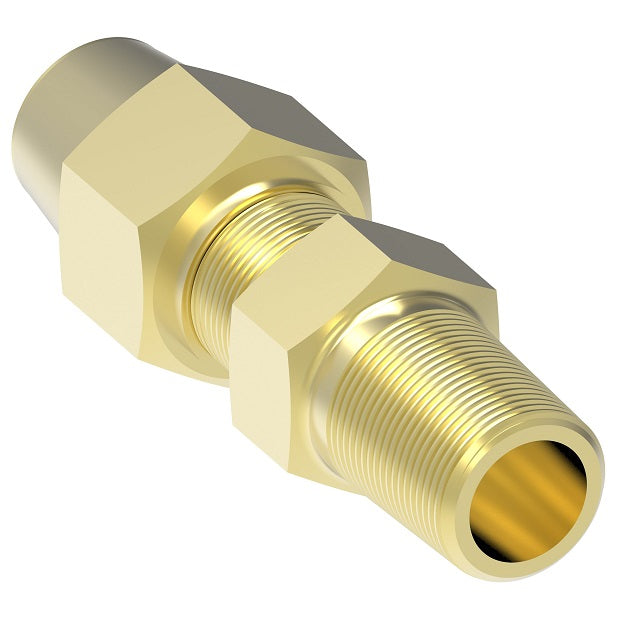

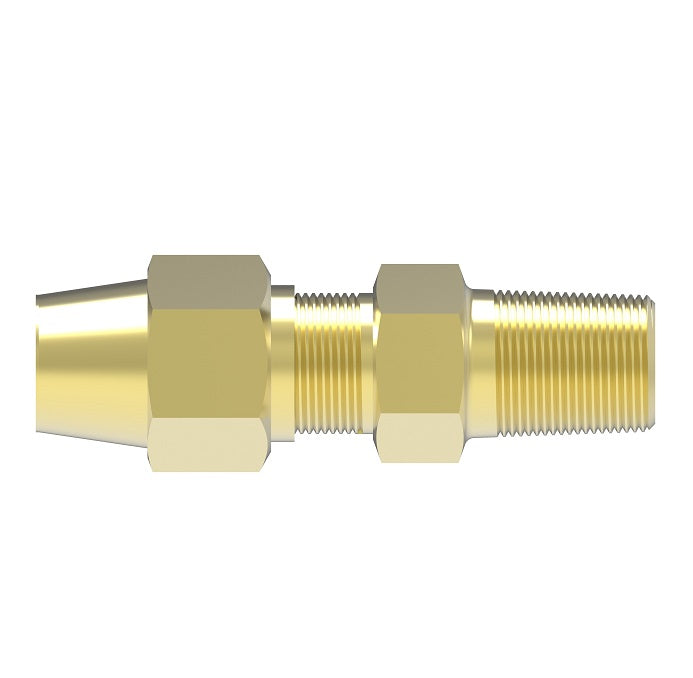

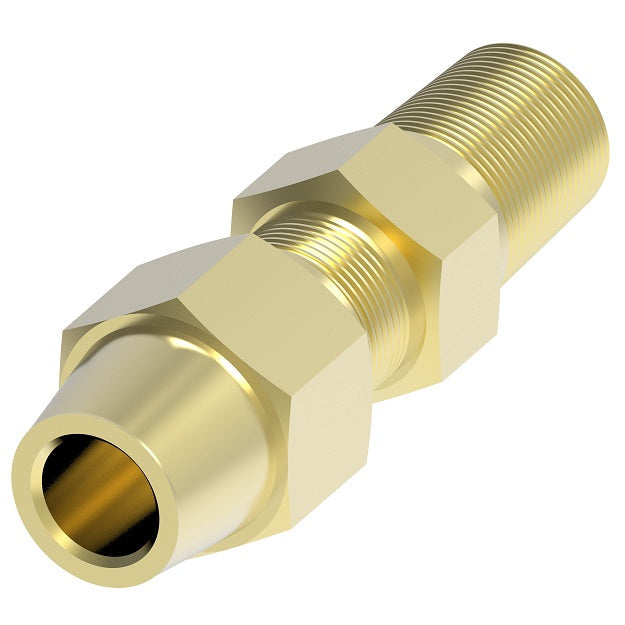

1681X4X4 by Danfoss | SelfAlign Adapter | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass

1681X4X4 by Danfoss | SelfAlign Adapter | Male Connector | Long Nut | 1/4" Tube OD x 1/4" Male NPTF | Brass

$3.70 - $3.70

$3.70

$3.70 - $3.70

$3.70

Aeroquip® by Danfoss
SelfAlign Adapter - Male Connector (with Long Nut)
SelfAlign End x Male NPTF
Straight

Specifications for Variant SKU: 1681X4X4 Danfoss
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Very low cost and reusable. Self aligning - no need to disassemble fitting to line up sleeve on tube. Low cost. Easy to assemble, no flaring. Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. Plastic tubing, except for PT230 and TP160, requires 2030x insert. Not recommended for steel tubing.
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
An exclusive product design, user approvals only

Brass Part Number	Tube O.D.	Male Pipe Thread
1681X4	1/4"	1/8"
1681X4X4	1/4"	1/4"
1681X6	3/8"	1/4"
