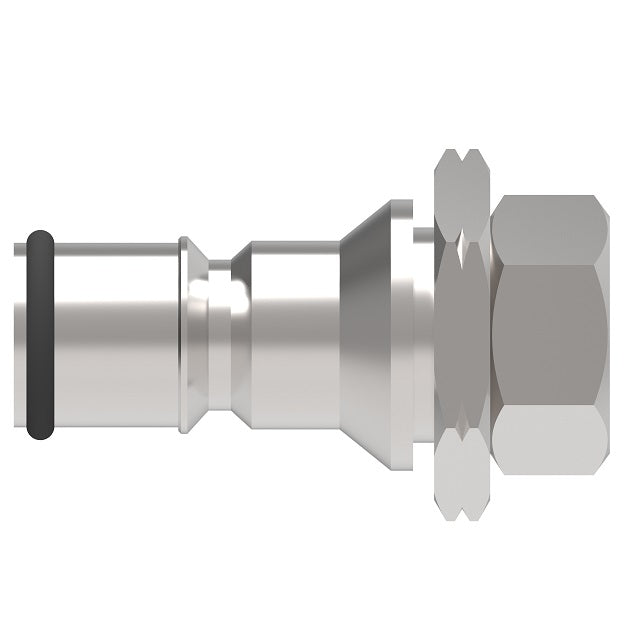

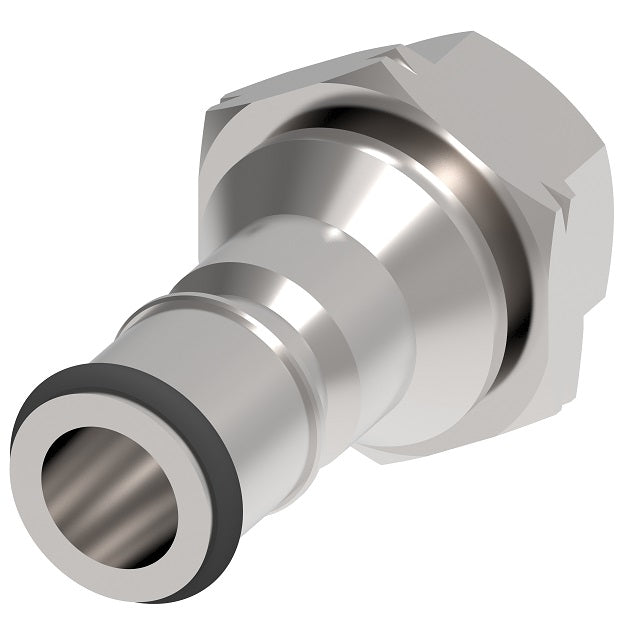

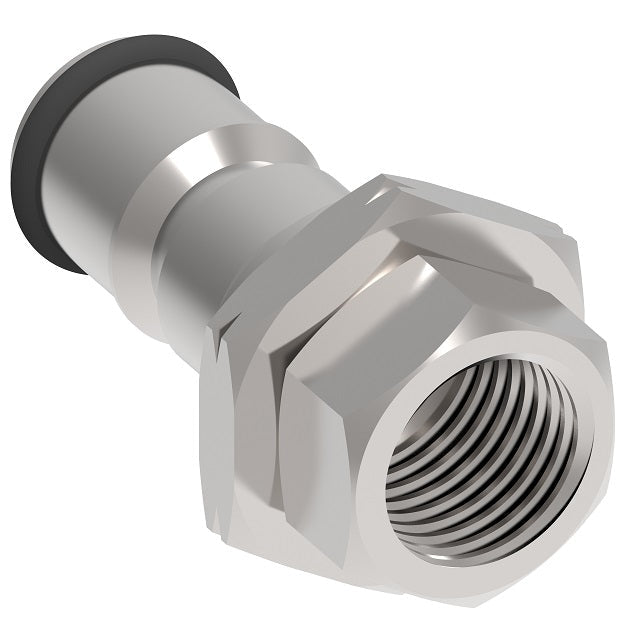

2KIGF Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIG Series | 5/8" Female NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel

2KIGF Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIG Series | 5/8" Female NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel

$0.00 - $0.00
$0.00
$30.67
$30.67 - $30.67
$30.67

Hansen® by Danfoss
2HKIG Series

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 2HKIG/2HKIL Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 2KIGF Danfoss
Brand: Hansen
Series: 2HKIG Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Ball lock.
  • Proprietary interchange with all stainless steel construction.
Applications & Markets:
  • Chemical
  • Food and Beverage
  • Military
  • Aerospace
Materials:
  • Standard body material: Stainless Steel.
  • Standard seal material: Nitrile (NBR).
Body Size Max. Operating
Pressure
Connected		 Min. Burst
Pressure		 Rated
Flow		 All Inclusion Fluid
Loss
bar psi bar psi
1/4 103 bar 1,500 psi 412 bar 6,000 psi 8.3 lpm 2.2 gpm 2.2 cc. Max 1 cc. Max
Socket/Female (Figure 1)
Plugs (Male) (Figure 2)
90° Elbow Socket/Female (Figure 3)
2HKIG Series | Male Threaded Ends
Part Number Body Size Type Female
Thread		 Figure Dimensions
NBR Seal A B Hex C D Hex
2HIG10 1/4" Socket/Female 1/8-27 Male NPTF 1 2.18"
(55.4mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIG15 1/4" Socket/Female 1/4-18 Male NPTF 1 2.31"
(58.7mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIG20 1/4" Socket/Female 3/8-18 Male NPTF 1 2.31"
(58.7mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIG720 1/4" Socket/Female 7/16-20 Male NPTF 1 2.27"
(57.7mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIGLLRA720 1/4" Socket/Female 7/16-20 Male NPTF 3 2.09"
(53.1mm)		 1.06"
(26.9mm)		 - - - -
2KIGF15 1/4" Plug/Male 1/4-18 Male NPTF 2 - - - 1.98"
(50.3mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
2KIGF20 1/4" Plug/Male 3/8-18 Male NPTF 2 - - - 1.98"
(50.3mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
Socket/Female (Figure 4)
Plugs (Male) (Figure 5)
2HKIG Series | Female Threaded Ends
Part Number Body Size Type Female
Thread		 Figure Dimensions
NBR Seal A B Hex C D Hex
2HIG16 1/4" Socket/Female 1/4-18 Fem. NPTF 4 2.26"
(57.4mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2KIGF16 1/4" Plug/Male 1/4-18 Fem. NPTF 5 - - - 1.84"
(46.7mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
2KIGF720 1/4" Plug/Male 7/16-20 Fem. UNF 5 - - - 1.61"
(40.9mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
2KIGF 1/4" Plug/Male 5/8-18 Fem. UNF 5 - - - 1.17"
(29.7mm)		 1.01"
(25.7mm)		 0.68"
(17.3mm)
