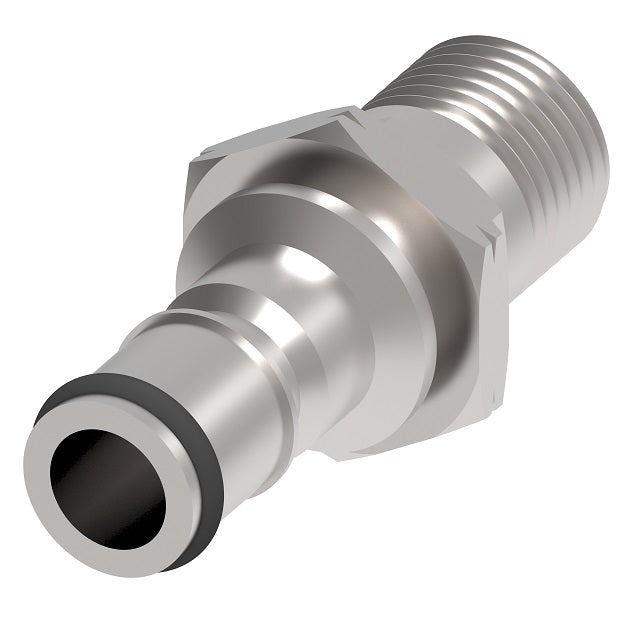

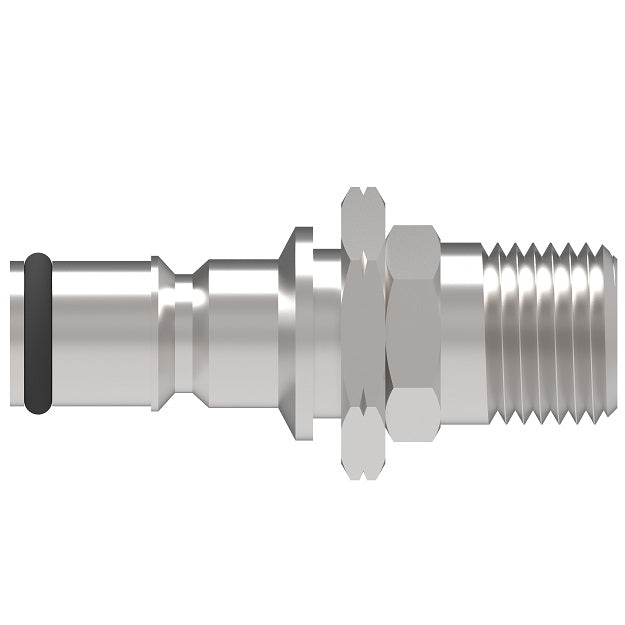

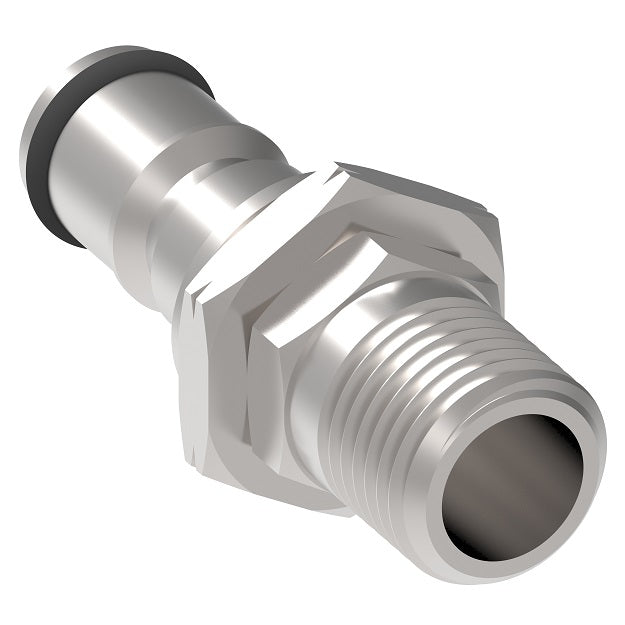

2KILF20 Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIL Series | 3/8" Male NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel
2KILF20 Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIL Series | 3/8" Male NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel
2KILF20 Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIL Series | 3/8" Male NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel
2KILF20 Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIL Series | 3/8" Male NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel

2KILF20 Hansen® by Danfoss | Quick Disconnect Coupling | 2HKIL Series | 3/8" Male NPTF x 1/4" Body Size | Plug | NBR Seal | Stainless Steel

$90.37 - $90.37
$90.37
$90.37 - $90.37
$90.37

Hansen® by Danfoss
2HKIL Series

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 2HKIG/2HKIL Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.
Specifications for Variant SKU: 2KILF20 Danfoss
Brand: Hansen
Series: 2HKIL Series
Shape (Orientation): Straight
Material(s): Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Ball lock.
  • Proprietary interchange with all stainless steel construction.
Applications & Markets:
  • Chemical
  • Food and Beverage
  • Military
  • Aerospace
Materials:
  • Standard body material: Stainless Steel.
  • Standard seal material: Nitrile (NBR).
Body Size Max. Operating
Pressure
Connected		 Min. Burst
Pressure		 Rated
Flow		 All Inclusion Fluid
Loss
bar psi bar psi
1/4 103 bar 1,500 psi 412 bar 6,000 psi 8.3 lpm 2.2 gpm 2.2 cc. Max 1 cc. Max
Socket/Female (Figure 1)
Plugs (Male) (Figure 2)
90° Elbow Socket/Female (Figure 3)
2HKIL Series | Male Threaded Ends
Part Number Body Size Type Female
Thread		 Figure Dimensions
NBR Seal A B Hex C D Hex
2HIL10 1/4" Socket/Female 1/8-27 Male NPTF 1 2.18"
(55.4mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIL15 1/4" Socket/Female 1/4-18 Male NPTF 1 2.31"
(58.7mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIL20 1/4" Socket/Female 3/8-18 Male NPTF 1 2.31"
(58.7mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HIL720 1/4" Socket/Female 7/16-20 Male NPTF 1 2.27"
(57.7mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2HILLLRA720 1/4" Socket/Female 7/16-20 Male NPTF 3 2.09"
(53.1mm)		 1.06"
(26.9mm)		 - - - -
2KILF15 1/4" Plug/Male 1/4-18 Male NPTF 2 - - - 1.98"
(50.3mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
2KILF20 1/4" Plug/Male 3/8-18 Male NPTF 2 - - - 1.98"
(50.3mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
Socket/Female (Figure 4)
Plugs (Male) (Figure 5)
2HKIL Series | Female Threaded Ends
Part Number Body Size Type Female
Thread		 Figure Dimensions
NBR Seal A B Hex C D Hex
2HIL16 1/4" Socket/Female 1/4-18 Fem. NPTF 4 2.26"
(57.4mm)		 1.06"
(26.9mm)		 0.81"
(20.6mm)		 - - -
2KILF16 1/4" Plug/Male 1/4-18 Fem. NPTF 5 - - - 1.84"
(46.7mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
2KILF720 1/4" Plug/Male 7/16-20 Fem. UNF 5 - - - 1.61"
(40.9mm)		 1.01"
(25.7mm)		 0.69"
(17.5mm)
2KILF 1/4" Plug/Male 5/8-18 Fem. UNF 5 - - - 1.17"
(29.7mm)		 1.01"
(25.7mm)		 0.68"
(17.3mm)
