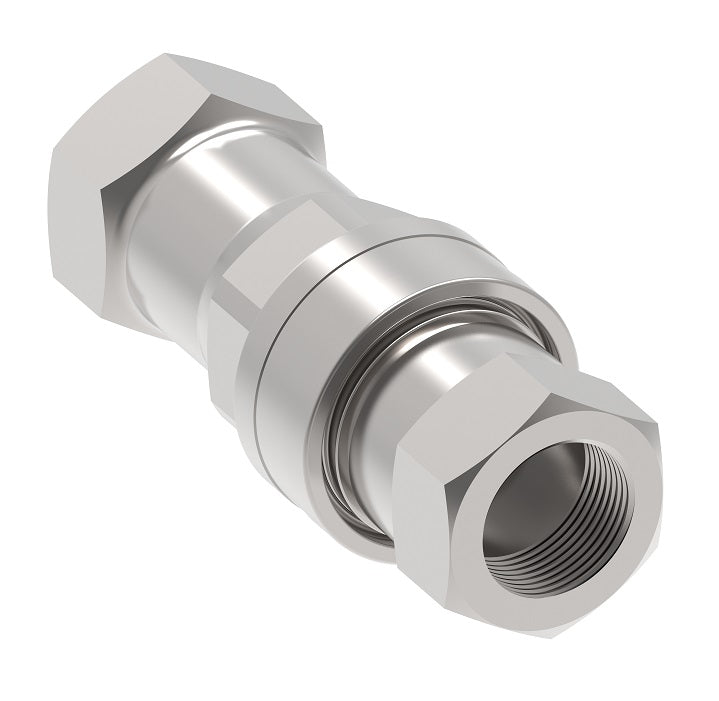

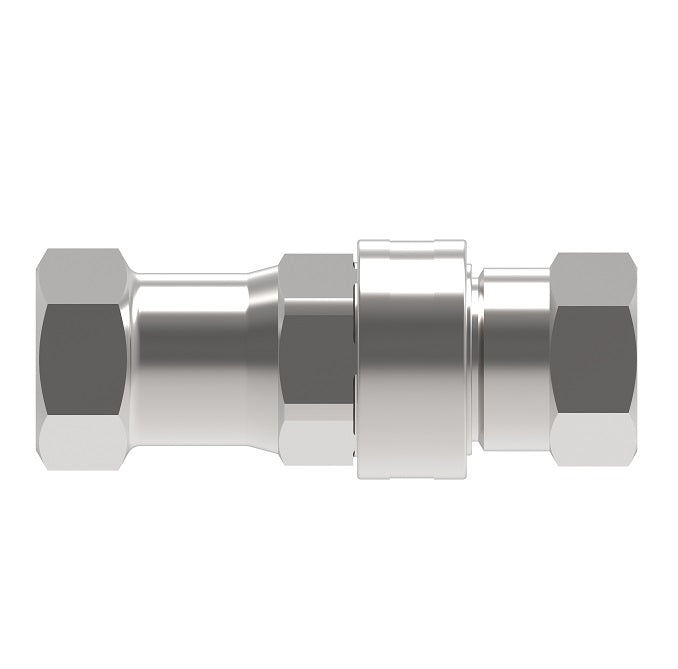

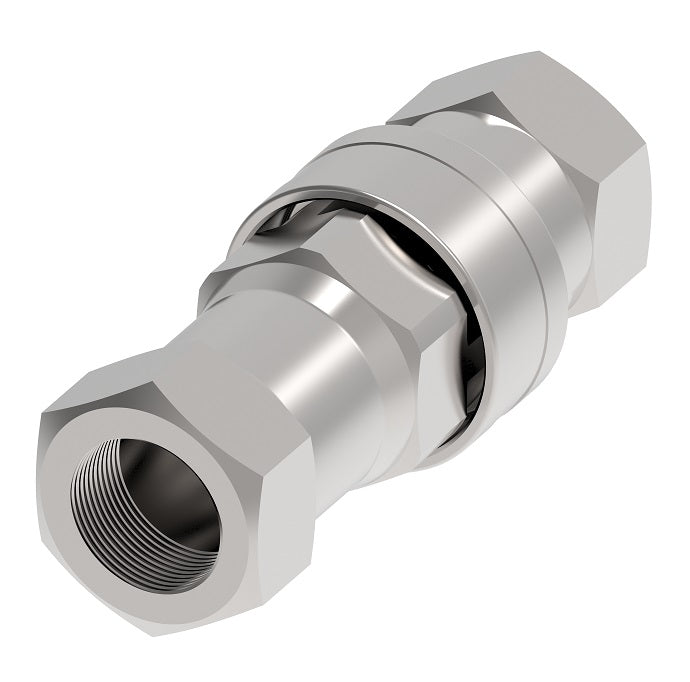

5606-16-16S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female SAE O-Ring Boss x 1-5/16" ISO 7241 Type A | Complete Plug and Socket Set | Valved | Buna-N Seal | Carbon Steel

5606-16-16S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 1" Female SAE O-Ring Boss x 1-5/16" ISO 7241 Type A | Complete Plug and Socket Set | Valved | Buna-N Seal | Carbon Steel

$163.27 - $163.27

$163.27

$163.27 - $163.27

$163.27

Hansen® by Danfoss

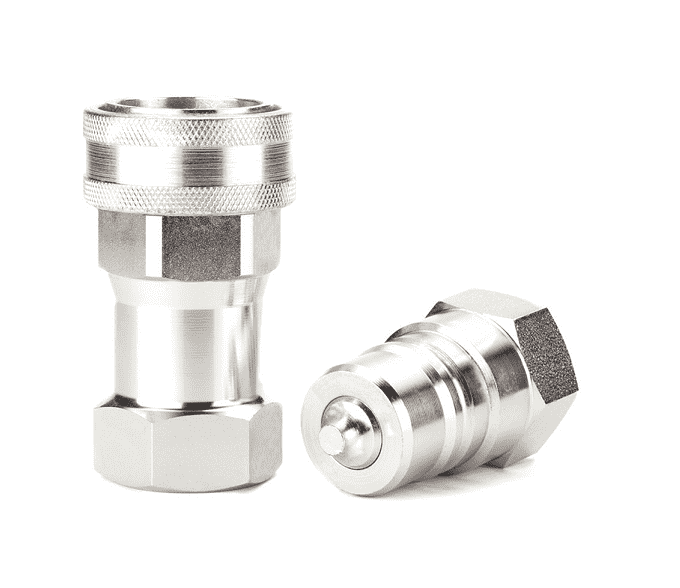

5600 Series | ISO 7241-1 A Interchange

Female SAE O-Ring Boss (Valved)

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves.

Note: Incorporates a pusher device to open mating valved coupling halves.

Quantity

Specifications for Variant SKU: 5606-16-16S Danfoss
Brand:	Hansen
Series:	5600 Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Boss, 1-5/16in ISO-A QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Self-sealing poppet valve provides excellent high and low pressure sealing. Streamlined valving provides minimum pressure drop.
Applications & Markets:	Hydraulic fluid transfer Agricultural equipment Construction equipment Dump, snow plow and maintenance vehicles In-plant manufacturing
ISO Standard:	Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:	Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size) Standard seal materials: Buna-N, EPDM and FKM

Body Size	Max. Operating Pressure		Minimum Burst Pressure Connected		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
in	bar	psi	bar	psi	in/hg	lpm	gpm	cc.max.	cc.max.
1/4	350	5000	1050	15000	28	4	1	0.50	0.50
3/8	280	4000	840	12000	28	23	6	1.5	1.3
5/8	280	4000	840	12000	28	45	12	2.8	2.8
3/4	280	4000	840	12000	28	106	28	10.0	8.2
1	280	4000	840	12000	28	189	50	14.2	14.2


Plug/Male (Figure 1)				Socket/Female (Figure 2)					Complete (Figure 3)
Dimensions (Female SAE O-Ring Boss, Valved)
Buna-N Part Number	FKM Part Number	EPDM Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
									A		B		Hex 1
									mm	in	mm	in	mm	in
5610-4-4S	FD56-1072-04-04	560078-4-4S	Plug/Male	1/4"	7/16"	7/16-20	Female SAE ORB	1	32.5mm	1.28"	-	-	15.7mm	0.62"
5608-4-4S	FD56-1074-04-04	FD56-1012-04-04S	Socket/Female	1/4"	7/16"	7/16-20	Female SAE ORB	2	46mm	1.81"	27.4mm	1.08"	22.4mm	0.88"
5606-4-4S	FD56-1075-04-04	FD56-1009-04-04S	Complete	1/4"	7/16"	7/16-20	Female SAE ORB	3	64.3mm	2.53"	-	-	-	-

5610-6-6S	FD56-1072-06-06	560078-6-6S	Plug/Male	3/8"	9/16"	9/16-18	Female SAE ORB	1	38.1mm	1.50"	-	-	22.4mm	0.88"
5608-6-6S	FD56-1074-06-06	FD56-1012-06-06S	Socket/Female	3/8"	9/16"	9/16-18	Female SAE ORB	2	54.6mm	2.15"	31.2mm	1.23"	25.4mm	1.00"
5606-6-6S	FD56-1075-06-06	FD56-1009-06-06S	Complete	3/8"	9/16"	9/16-18	Female SAE ORB	3	72.1mm	2.84"	-	-	-	-

5610-8-10S	FD56-1072-08-10	560078-8-10S	Plug/Male	5/8"	3/4"	3/4-16	Female SAE ORB	1	51.6mm	2.03"	-	-	26.9mm	1.06"
5608-8-10S	FD56-1074-08-10	FD56-1012-08-10S	Socket/Female	5/8"	3/4"	3/4-16	Female SAE ORB	2	66.3mm	2.61"	38.1mm	1.50"	30.2mm	1.19"
5606-8-10S	FD56-1075-08-10	FD56-1009-08-10S	Complete	5/8"	3/4"	3/4-16	Female SAE ORB	3	96mm	3.78"	-	-	-	-

5610-10-10S	FD56-1072-10-10	560078-10-10S	Plug/Male	5/8"	7/8"	7/8-14	Female SAE ORB	1	52.8mm	2.08"	-	-	28.4mm	1.12"
5608-10-10S	FD56-1074-10-10	FD56-1012-10-10S	Socket/Female	5/8"	7/8"	7/8-14	Female SAE ORB	2	66.3mm	2.61"	38.1mm	1.50"	30.2mm	1.19"
5606-10-10S	FD56-1075-10-10	FD56-1009-10-10S	Complete	5/8"	7/8"	7/8-14	Female SAE ORB	3	98.6mm	3.88"	-	-	-	-

5610-12-12S	-	560078-12-12S	Plug/Male	3/4"	1-1/16"	1-1/16-12	Female SAE ORB	1	64.8mm	2.55"	-	-	35.1mm	1.38"
5608-12-12S	FD56-1074-12-12	FD56-1012-12-12S	Socket/Female	3/4"	1-1/16"	1-1/16-12	Female SAE ORB	2	82.6mm	3.25"	46mm	1.81"	38.1mm	1.50"
5606-12-12S	FD56-1075-12-12	FD56-1009-12-12S	Complete	3/4"	1-1/16"	1-1/16-12	Female SAE ORB	3	115.8mm	4.56"	-	-	-	-

5610-16-16S	FD56-1072-16-16	560078-16-16S	Plug/Male	1"	1-5/16"	1-5/16-12	Female SAE ORB	1	78.7mm	3.10"	-	-	41.1mm	1.62"
5608-16-16S	FD56-1074-16-16	FD56-1012-16-16S	Socket/Female	1"	1-5/16"	1-5/16-12	Female SAE ORB	2	97.3mm	3.83"	53.3mm	2.10"	42.9mm	1.69"
5606-16-16S	FD56-1075-16-16	FD56-1009-16-16S	Complete	1"	1-5/16"	1-5/16-12	Female SAE ORB	3	140.7mm	5.54"	-	-	-	-

Dimensions (Female SAE O-Ring Boss, Valved with Sleeve Lock)
Buna-N Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
							A		B		Hex 1
							mm	in	mm	in	mm	in
FD56-1270-06-06	Socket/Female	3/8"	9/16"	9/16-18	Female SAE ORB	3	54.6mm	2.15"	31.8mm	1.23"	25.4mm	1.00"
FD56-1270-08-10	Socket/Female	5/8"	3/4"	3/4-16	Female SAE ORB	3	66.3mm	2.61"	38.1mm	1.50"	30.2mm	1.19"
FD56-1270-12-12	Socket/Female	3/4"	1-1/16"	1-1/16-12	Female SAE ORB	3	82.6mm	3.25"	46.7mm	1.81"	38.1mm	1.50"
FD56-1270-16-16	Socket/Female	1"	1-5/16"	1-5/16-12	Female SAE ORB	3	97.0mm	3.82"	54.1mm	2.10"	42.9mm	1.69"
