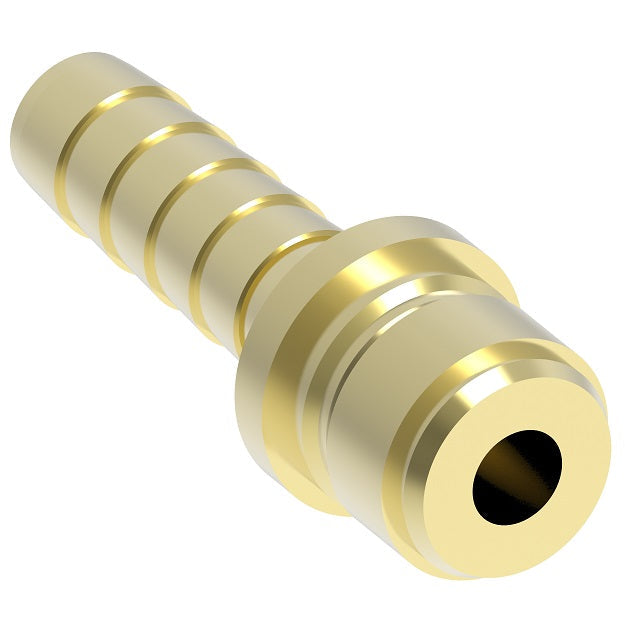

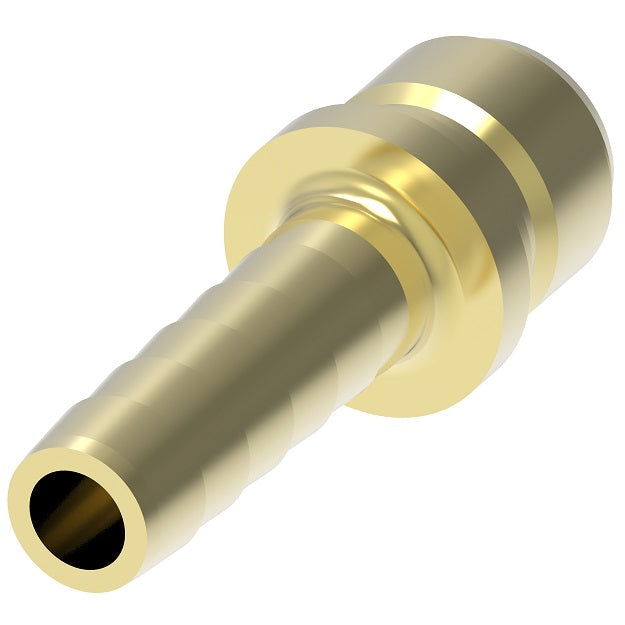

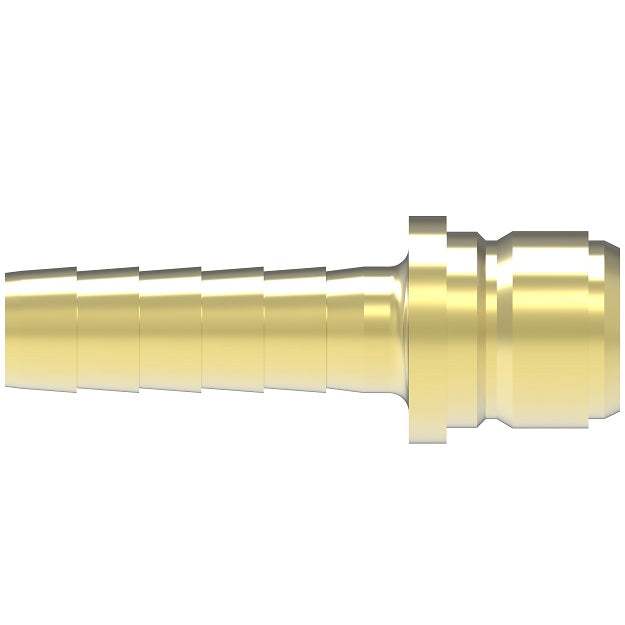

B6T32 Hansen® by Danfoss | Quick Disconnect Coupling | ST Series | 3/4" Hose ID x 3/4" Body Size | Plug | NBR Seal | Brass

B6T32 Hansen® by Danfoss | Quick Disconnect Coupling | ST Series | 3/4" Hose ID x 3/4" Body Size | Plug | NBR Seal | Brass

$0.00 - $0.00
$0.00
$20.03
$20.03 - $20.03
$20.03

Hansen® by Danfoss
ST Series | Hose Stem End Connection
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: B6T32 Danfoss
Brand: Hansen
Series: ST Series
Shape (Orientation): Straight
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber

Hansen® by Danfoss
ST Series | Hose Stem End Connection

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen ST Series is a straight-through coupling that is designed for use where minimum pressure drop is required and valving is not needed.

These couplings are suited for various and versatile fluid transfer type systems.


Product Features:
  • Ball-latching mechanism.
  • Smooth bore permits free flow of liquid or gas.
Applications & Markets:
  • Fluid Transfer
  • Chemical
  • Food and Beverage
  • Injection Molding
  • Marine
  • Medical
  • Pressure Washing
  • Steam Cleaning
Materials:
  • Standard body material: Brass, 303 Stainless Steel, Steel
  • Standard seal material: Nitrile (NBR)
European Pressure Equipment Directive:
  • Couplings with nominal diameters up to and including 25 mm are designed and manufactured under Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module A of the European Pressure Equipment Directive PED 2014/68/EU. They should not be used to convey unstable gases.
Series Body Size Max. Operating
Pressure
Brass Socket
& Plug**		 Max. Operating
Pressure
Brass Socket
& Steel Plug**		 Max. Operating
Pressure
Stainless Socket
& Plug**		 Max. Operating
Pressure
Hazardous Liquids
and Gases
Group 1		 Min. Burst Pressure* Rated
Flow
bar psi bar psi bar psi bar psi bar psi
1ST 1/8" 193 bar 2,800 psi 234 bar 3,400 psi 290 bar 4,200 psi *** bar *** psi 772 bar 11,200 psi 10 lpm 2.7 gpm
2ST 1/4" 359 bar 5,200 psi 379 bar 5,500 psi 517 bar 7,500 psi *** bar *** psi 1,436 bar 20,800 psi 21 lpm 5.6 gpm
3ST 3/8" 193 bar 2,800 psi 290 bar 4,200 psi 434 bar 6,300 psi *** bar *** psi 772 bar 11,200 psi 57 lpm 15 gpm
4ST 1/2" 152 bar 2,200 psi 241 bar 3,500 psi 248 bar 3,600 psi *** bar *** psi 608 bar 8,800 psi 83 lpm 22 gpm
6ST 3/4" 117 bar 1,700 psi 145 bar 2,100 psi 207 bar 3,000 psi *** bar *** psi 468 bar 6,800 psi 250 lpm 66 gpm
8ST 1" 90 bar 1,300 psi 138 bar 2,000 psi 138 bar 2,000 psi *** bar *** psi 360 bar 5,200 psi 530 lpm 140 gpm
10ST 1-1/4" 117 bar 1,700 psi 186 bar 2,700 psi 152 bar 2,200 psi *** bar *** psi 468 bar 6,800 psi 697 lpm 184 gpm
12ST 1-1/2" 97 bar 1,400 psi 152 bar 2,200 psi 172 bar 2,500 psi 33 bar 480 psi 388 bar 5,600 psi 1,124 lpm 297 gpm
16ST 2" 97 bar 1,400 psi 152 bar 2,200 psi 103 bar 1,500 psi 27 bar 390 psi 388 bar 5,600 psi 1,855 lpm 490 gpm
20ST 2-1/2" 62 bar 900 psi 103 bar 1,500 psi - - 20 bar 290 psi 248 bar 3,600 psi 3,131 lpm 827 gpm

*For Brass socket and plug. Other materials have 4 to 1 safety factor
** Operating pressure for Non Hazardous liquids and gases from Group 2
*** Operating pressure is same as Non Hazardous liquids and gases from Group 2 for this size
Socket/Female (Figure 1)
ST Series | Sockets | Hose Stem Ends
Brass
Part Number		 303 Stainless Steel
Part Number		 Body Size Type Hose ID Figure Dimensions
NBR Seal NBR Seal A B
1S12 LL1S12 1/8" Socket/Female 3/16" 1 1.41"
(35.8mm)		 0.72"
(18.3mm)
1S17 LL1S17 1/8" Socket/Female 1/4" 1 1.41"
(35.8mm)		 0.72"
(18.3mm)
2S17 - 1/4" Socket/Female 1/4" 1 2.10"
(53.3mm)		 0.97"
(24.6mm)
3S22 LL3S22 3/8" Socket/Female 3/8" 1 2.09"
(53.1mm)		 1.16"
(29.5mm)
4S27 LL4S27 1/2" Socket/Female 1/2" 1 2.19"
(55.6mm)		 1.34"
(34.0mm)
6S32 LL6S32 3/4" Socket/Female 3/4" 1 3.19"
(81.0mm)		 1.72"
(43.7mm)
8S37 LL8S37 1" Socket/Female 1" 1 3.32"
(84.3mm)		 2.03"
(51.6mm)
Plug/Male (Figure 2)
ST Series | Plugs | Hose Stem Ends
Brass
Part Number		 303 Stainless Steel
Part Number		 Steel
Part Number		 Body Size Type Hose ID Figure Dimensions
NBR Seal NBR Seal NBR Seal C D
B1T12 LL1T12 - 1/8" Plug/Male 3/16" 2 1.28"
(32.5mm)		 0.44"
(11.2mm)
B1T17 LL1T17 - 1/8" Plug/Male 1/4" 2 1.28"
(32.5mm)		 0.44"
(11.2mm)
B2T17 LL2T17 - 1/4" Plug/Male 1/4" 2 1.93"
(49.0mm)		 0.56"
(14.2mm)
B3T22 LL3T22 - 3/8" Plug/Male 3/8" 2 2.09"
(53.1mm)		 0.69"
(17.5mm)
B4T27 LL4T27 - 1/2" Plug/Male 1/2" 2 2.17"
(55.1mm)		 0.88"
(22.4mm)
B6T32 LL6T32 - 3/4" Plug/Male 3/4" 2 3.17"
(80.5mm)		 1.19"
(30.2mm)
B8T37 - 8T37 1" Plug/Male 1" 2 3.28"
(83.3mm)		 1.5"
(38.1mm)
