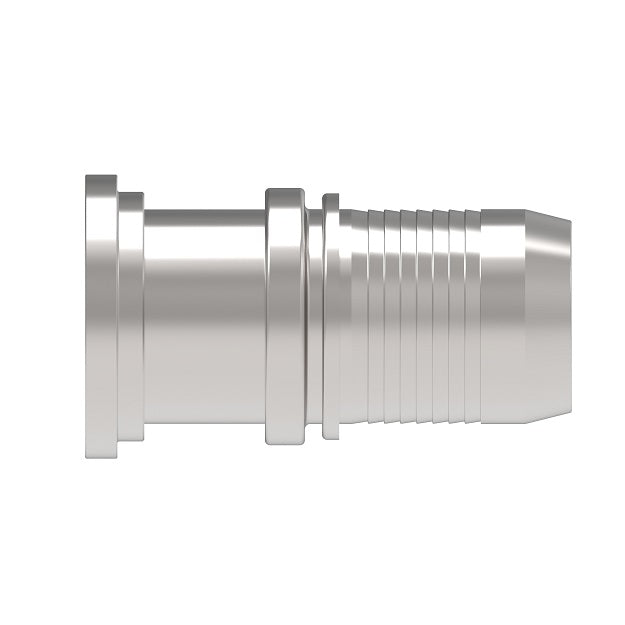

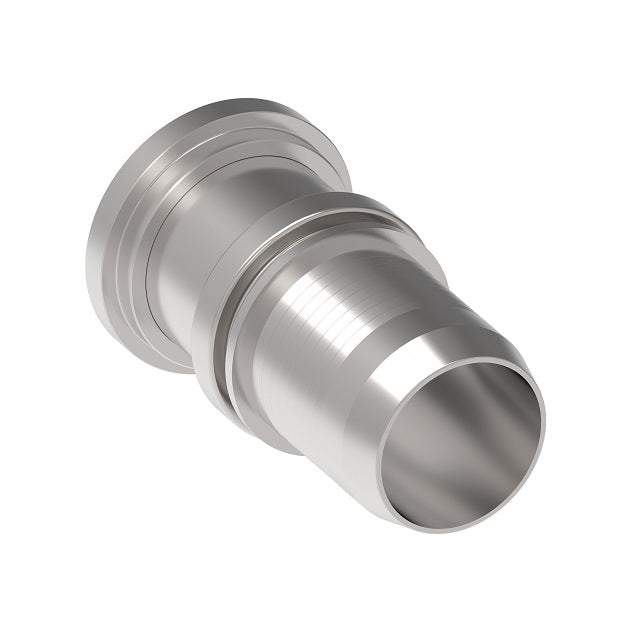

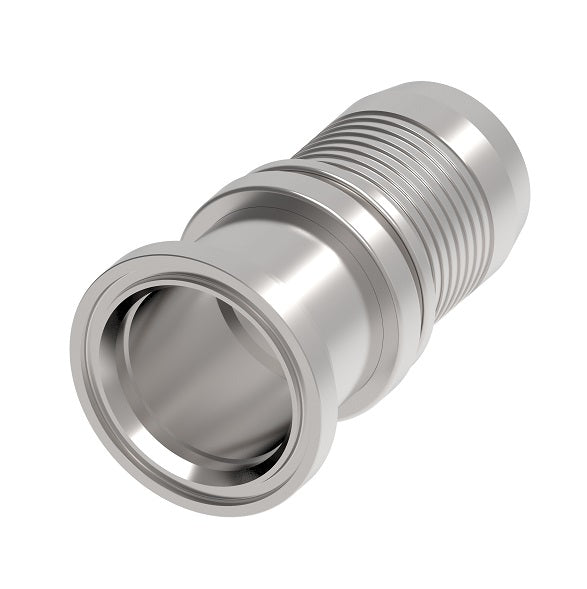

FC8153-4040S Aeroquip by Danfoss | Spiral Single Skive Crimp Fitting | FC Series | Nipple Assembly | -40 Code 61 Split Flange x -40 Hose Barb | Carbon Steel

FC8153-4040S Aeroquip by Danfoss | Spiral Single Skive Crimp Fitting | FC Series | Nipple Assembly | -40 Code 61 Split Flange x -40 Hose Barb | Carbon Steel

Name: FC8153-4040S Aeroquip by Danfoss | Spiral Single Skive Crimp Fitting | FC Series | Nipple Assembly | -40 Code 61 Split Flange x -40 Hose Barb | Carbon Steel
Brand: Danfoss/Eaton
SKU: FC8153-4040S Danfoss
Price: 171.14 USD
Availability: InStock

$171.14 - $171.14

$171.14

$171.14 - $171.14

$171.14

Aeroquip® by Danfoss
Spiral Single Skive Crimp Fitting - Code 61 Split Flange SAEJ518c - Straight

FC Series

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC8153-4040S Danfoss
Brand:	Aeroquip
Series:	FC Series
Ends Configuration:	2-1/2in Code 61 Flange, 2-1/2in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	FC254 Series \| FC273 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Complete Fitting Carbon Steel Part Number	Nipple Only Carbon Steel Part Number	Socket Carbon Steel Part Number	Flange Head Diameter KØ	Hose Size	A	D	EØ
FC9153-4040S	FC8153-4040S	FC3023-40S	3.31"	-40	5.67"	2.96"	2.10"
