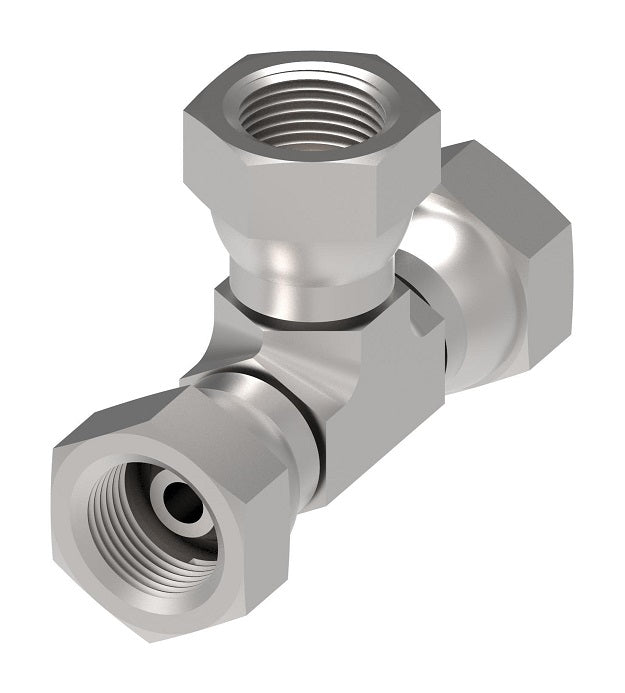

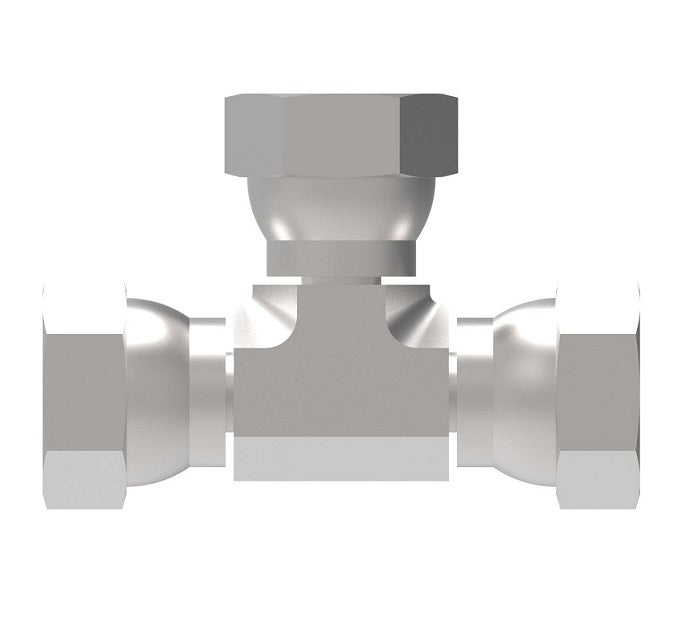

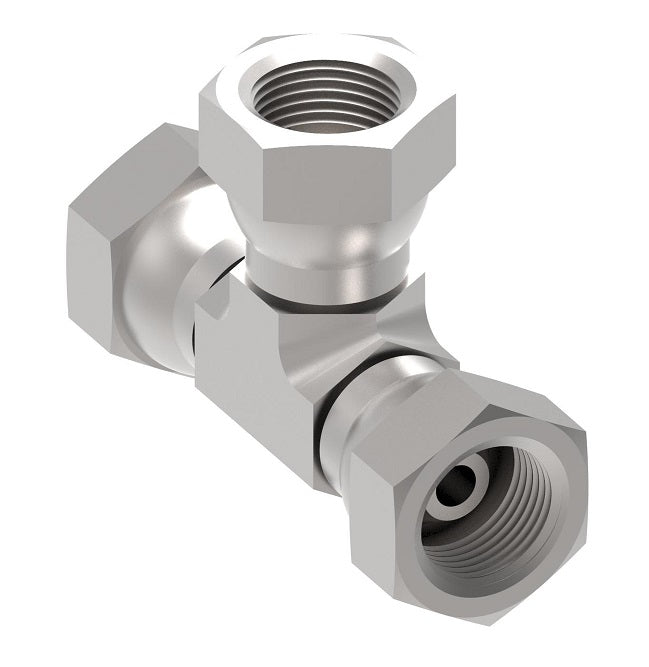

FF4306-1212S Aeroquip by Danfoss | JIC Union Adapter | Tee | -12 Female JIC x -12 Female JIC x -12 Female JIC | Carbon Steel
FF4306-1212S Aeroquip by Danfoss | JIC Union Adapter | Tee | -12 Female JIC x -12 Female JIC x -12 Female JIC | Carbon Steel
FF4306-1212S Aeroquip by Danfoss | JIC Union Adapter | Tee | -12 Female JIC x -12 Female JIC x -12 Female JIC | Carbon Steel
FF4306-1212S Aeroquip by Danfoss | JIC Union Adapter | Tee | -12 Female JIC x -12 Female JIC x -12 Female JIC | Carbon Steel

FF4306-1212S Aeroquip by Danfoss | JIC Union Adapter | Tee | -12 Female JIC x -12 Female JIC x -12 Female JIC | Carbon Steel

$25.10 - $25.10
$25.10
$25.10 - $25.10
$25.10

Aeroquip® by Danfoss
JIC 74° Adapter Tee
Female JIC 74° x Female JIC 74° x Female JIC 74°

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4306-1212S Danfoss
Brand: Aeroquip
Shape (Orientation): Tee
Ends Configuration: 3/4in Female JIC, 3/4in Female JIC, 3/4in Female JIC, Some Ends Match
Material(s): Carbon Steel
Specifications:
  • Ref. Performance per ISO 8434-2
Steel
Part Number 		Tube OD Thread T A B
FF4306-0404S 0.25" 7/16-20 0.63" 0.63"
FF4306-0606S 0.38" 9/16-18 0.79" 0.79"
FF4306-0808S 0.50" 1/2-14 0.87" 0.87"
FF4306-1212S 0.75" 1 1/16-12 1.18" 1.18"
FF4306-1616S 1.00" 1 5/16-12 1.36" 1.36"
FF4306-2020S 1.25" 1 5/8-12 1.69" 1.69"
