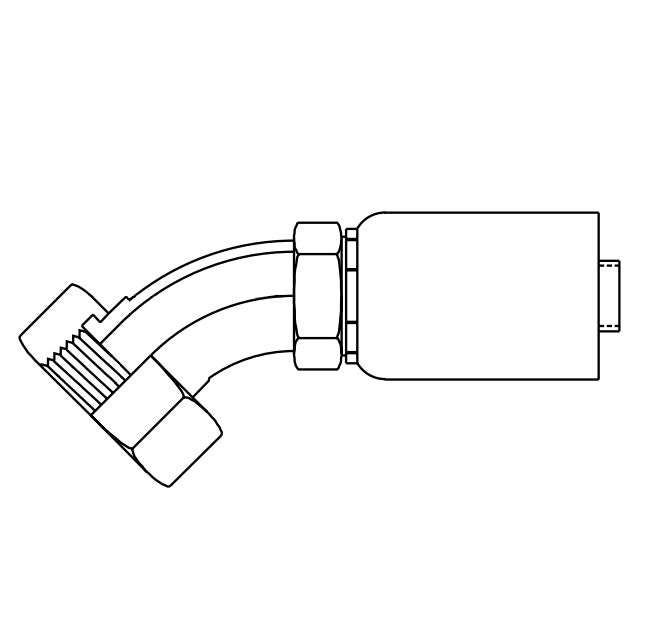

FJ9481-0606S Synflex by Danfoss | Polyon Swage Hose Fitting | 45° Elbow | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Carbon Steel

FJ9481-0606S Synflex by Danfoss | Polyon Swage Hose Fitting | 45° Elbow | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Carbon Steel

$173.04 - $173.04
$173.04
$173.04 - $173.04
$173.04

Synflex by Danfoss
Polyon Swage Hose Fitting - Female O-Ring Face Seal Swivel - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9481-0606S Danfoss
Brand: Synflex
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Female O-Ring Face Seal, 3/8in Hose Barb
Material(s): Carbon Steel
Compatible with the following Series: 3130 Series  |   37AL Series  |   3740 Series
Carbon Steel
Part Number 		Terminal End Thread Hose Size A Cut Off
Factor
D		 EØ H Hex 1 Hex 2
Dash Size DN Dash Size mm in mm in mm in mm in in in
FJ9481-0404S -04 9/16 -18 6 -04 58,4mm 2.30" 35,6mm 1.40" 3,8mm 0.15" 10,4mm 0.41" 0.69" 0.62"
FJ9481-0606S -06 11/16 - 16 10 -06 68,6mm 2.70" 32,0mm 1.26" 6,1mm 0.24" 10,9mm 0.43" 0.81" 0.75"
FJ9481-1212S -12 1-3/16-12 19 -12 96,8mm 3.81" 49,8mm 1.96" 14,7mm 0.58" 21,1mm 0.83" 1.38" 1.12"
