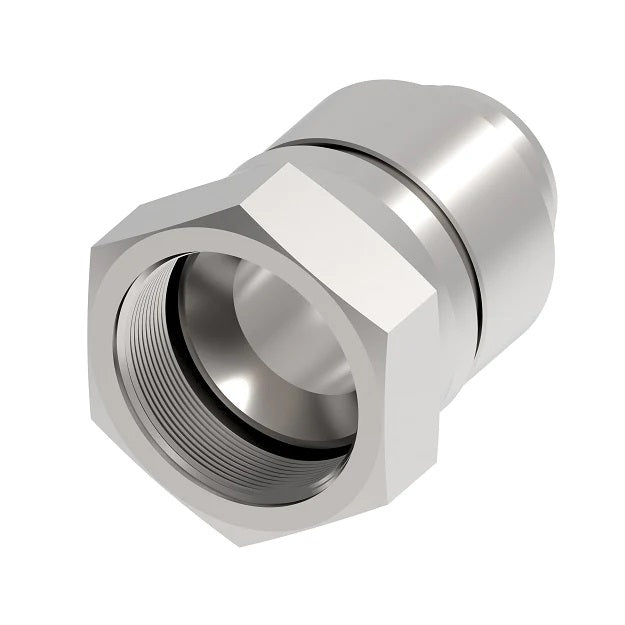

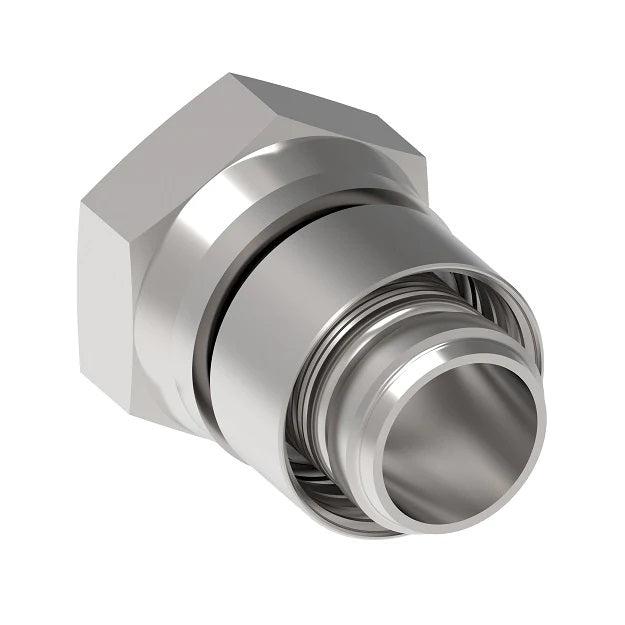

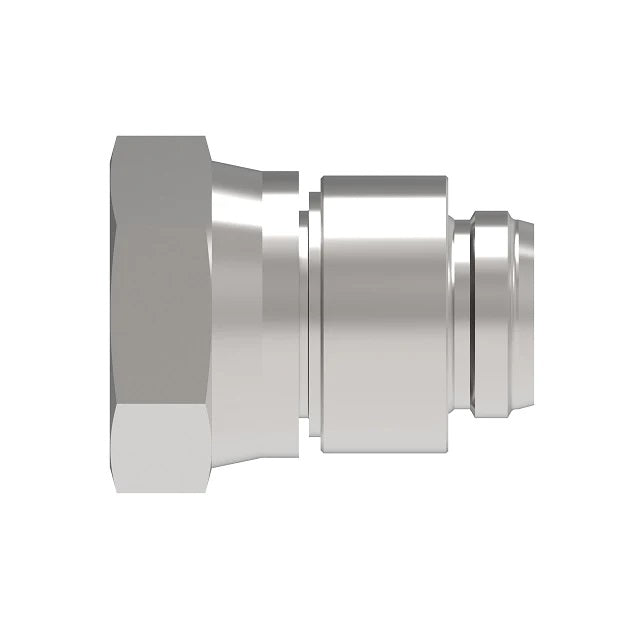

FJ9587-1212S Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel

FJ9587-1212S Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -12 Female 37° JIC Swivel x -12 Hose Barb | Carbon Steel | Pack of 10

Minimum Order Quantity: 10 Units

$1,626.40 - $1,626.40

$1,626.40

$1,626.40 - $1,626.40

$1,626.40

Aeroquip® by Danfoss
Flat Crimp Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ9587-1212S Danfoss \| 10 \|
Brand:	Aeroquip
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Carbon Steel
Compatible with the following Series:	FC363 Series \| FC364 Series \| FC563 Series


Complete Fitting Carbon Steel Part Number	Nipple Assembly Carbon Steel Part Number	Socket Carbon Steel Part Number	Thread	Hose Size	A	D	EØ	Hex 1
FJ9587-0808S	FJ8587-0808S	FC1347-08S	3/4-16	-08	2.52"	1.10"	.38"	.88"
FJ9587-1212S	FJ8587-1212S	FC1347-12S	1-1/16-12	-12	2.55"	1.23"	.61"	1.25"
FJ9587-1616S	FJ8587-1616S	FC1347-16S	1-5/16-12	-16	2.69"	1.37"	.81"	1.50"
-	FJ8587-2020S	FC1347-20S	1-5/8-12	-20	2.84"	1.52"	1.05"	2.00"
FJ9587-2424S	FJ8587-2424S	FC1347-24S	1-7/8-12	-24	3.21"	1.67"	1.28"	2.25"
FJ9587-3232S	FJ8587-3232S	FC1347-32S	2-1/2-12	-32	3.50"	1.92"	1.75"	2.88"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
