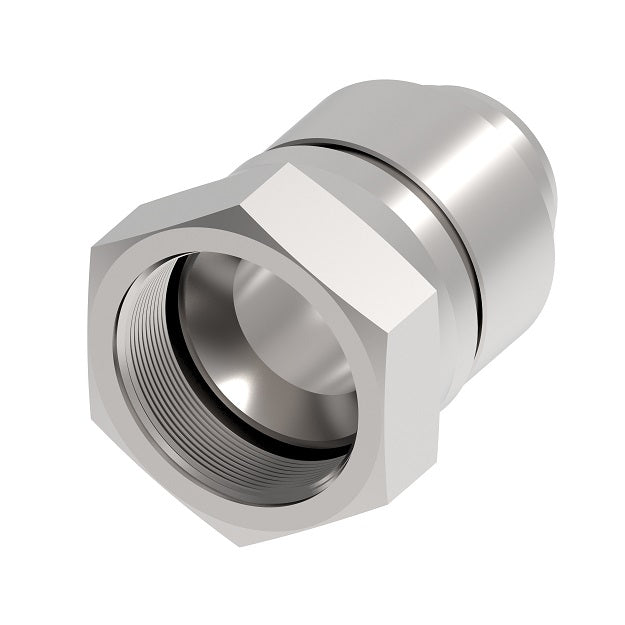

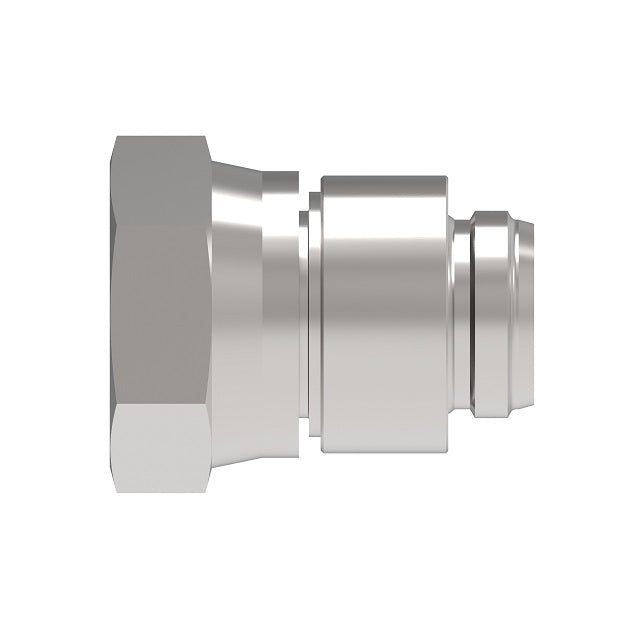

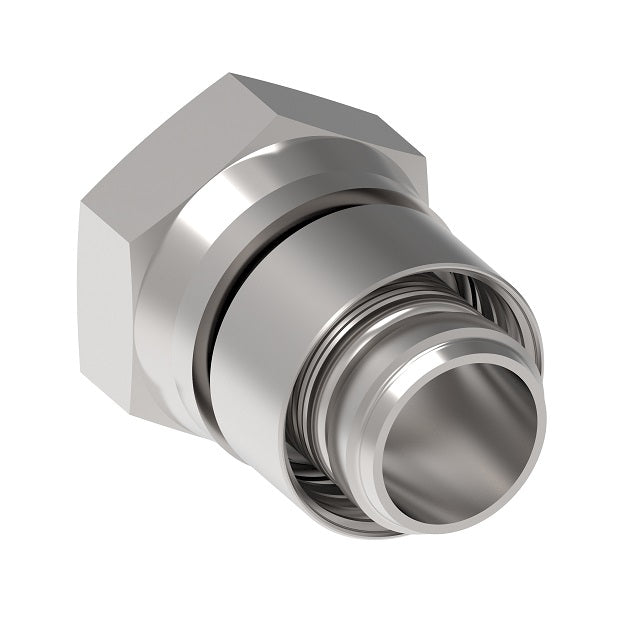

FJ9587-2020-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -20 Female 37° JIC Swivel x -20 Hose Barb | Stainless Steel
FJ9587-2020-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -20 Female 37° JIC Swivel x -20 Hose Barb | Stainless Steel
FJ9587-2020-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -20 Female 37° JIC Swivel x -20 Hose Barb | Stainless Steel
FJ9587-2020-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -20 Female 37° JIC Swivel x -20 Hose Barb | Stainless Steel

FJ9587-2020-331 Aeroquip by Danfoss | PTFE Hose Crimp Fitting | Complete Fitting | -20 Female 37° JIC Swivel x -20 Hose Barb | Stainless Steel

$548.40 - $548.40
$548.40
$548.40 - $548.40
$548.40

Aeroquip® by Danfoss
Flat Crimp Fitting for PTFE Hose - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9587-2020-331 Danfoss
Brand: Aeroquip
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Hose Barb
Material(s): Stainless Steel
Compatible with the following Series: FC363 Series  |   FC364 Series  |   FC563 Series
Complete Fitting
Stainless Steel
Part Number 		Nipple Assembly
Stainless Steel
Part Number 		Socket
Stainless Steel
Part Number 		Thread Hose Size A D EØ Hex 1
FJ9587-0808-331 FJ8587-0808-331 FC1347-08-329 3/4-16 -08 2.52" 1.10" .38" .88"
FJ9587-1212-331 FJ8587-1212-331 FC1347-12-329 1-1/16-12 -12 2.55" 1.23" .61" 1.25"
FJ9587-1616-331 FJ8587-1616-331 FC1347-16-329 1-5/16-12 -16 2.69" 1.37" .81" 1.50"
FJ9587-2020-331 FJ8587-2020-331 FC1347-20-329 1-5/8-12 -20 2.84" 1.52" 1.05" 2.00"
FJ9587-2424-331 FJ8587-2424-331 FC1347-24-329 1-7/8-12 -24 3.21" 1.67" 1.28" 2.25"
FJ9587-3232-331 FJ8587-3232-331 FC1347-32-329 2-1/2-12 -32 3.50" 1.92" 1.75" 2.88"
