LL2H8MS Hansen® by Danfoss | Quick Disconnect Coupling | HK Series | 1/2" Male 37° JIC x 1/4" Body Size | Socket | NBR Seal | 303 Stainless Steel

$258.78 - $258.78

$258.78

$258.78 - $258.78

$258.78

Hansen® by Danfoss
HK Series | Special Configuration

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen LL2HK-MS series is a special HK series made for specific application. This coupling is made of 303 stainless steel. The locking mechanism is push/pull.

This specific coupling has been made for testing ground equipment for aerospace applications. It was created based on the HK series (stainless steel). It is a unique profile which is not interchangeable with the 2HK series.

Quantity

Specifications for Variant SKU: LL2H8MS Danfoss
Brand:	Hansen
Series:	HK Series
Material(s):	303 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Proprietary profile.
Applications & Markets:	Hydraulic application Aerospace industry Specific application
Materials:	Standard body material: 303 Stainless Steel. Standard seal material: Nitrile (NBR)

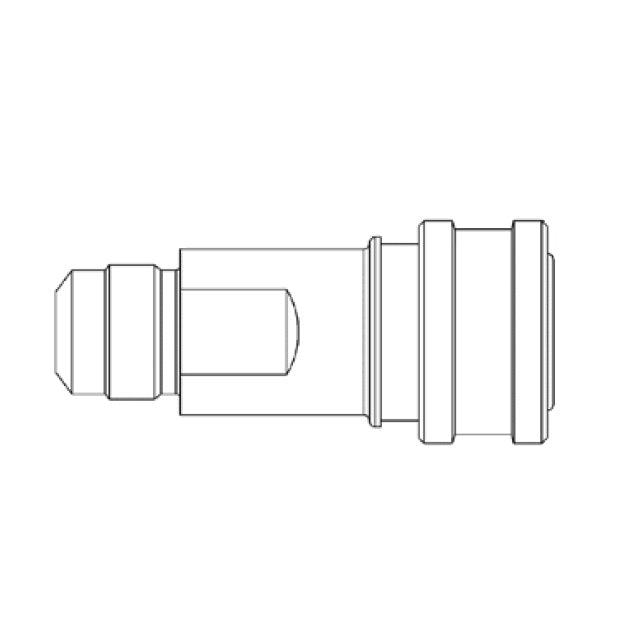

Socket/Female (Figure 1)				Plugs (Male) (Figure 2)
HK1-8 Special Configuration Series
Part Number 303 Stainless Steel	Body Size	Nominal Flow Diameter	Type	Female Thread	Figure	Dimensions
NBR Seal	Body Size	Nominal Flow Diameter	Type	Female Thread	Figure	A	B	C	D	Hex
LL2H8MS	1/4"	5,9mm	Socket/Female	3/4-16 Male 37° JIC	1	49,9mm	28,9mm	44,7mm	-	-
LL2K6MS1	1/4"	5,9mm	Plug/Male	3/4-16 Male 37° JIC	2	-	-	-	20,6mm	12,7mm
