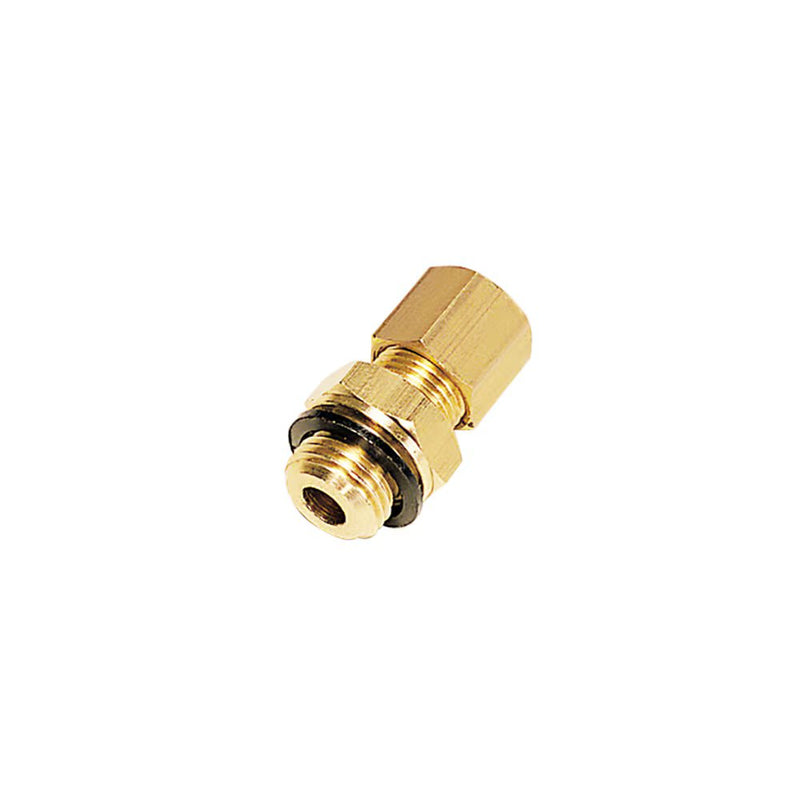

0101 16 17 by Parker | Legris Stud Fitting w/ Captive Sealing Washer | 16 mm Tube Size x 3/8" Male BSPP Thread | 22 mm Hex (F) | 27 mm Hex (F1) | Straight | Brass | Pack of 5

Save $8.12

$89.30

$89.30 - $89.30

$89.30

$81.18

$81.18 - $81.18

$81.18

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0101 Stud Fitting with Captive Sealing Washer, Male BSPP and Metric Thread

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 0101 16 17 Parker \| 5 \|
Series:	0101 Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Polymer
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	E	F	F1	H (max)	H1	Kg
0101 04 19	4 mm	M5x0.8	5 mm	10 mm	10 mm	16.5 mm	8 mm	.011 Kg
0101 04 10	4 mm	1/8"	6.5 mm	13 mm	10 mm	16.5 mm	8 mm	.011 Kg
0101 05 10	5 mm	1/8"	6.5 mm	13 mm	12 mm	17.5 mm	8.5 mm	.019 Kg
0101 06 10	6 mm	1/8"	6.5 mm	13 mm	13 mm	18 mm	8.5 mm	.020 Kg
0101 06 13	6 mm	1/4"	8 mm	17 mm	13 mm	18 mm	9.5 mm	.030 Kg
0101 08 10	8 mm	1/8"	6.5 mm	13 mm	14 mm	19 mm	8.5 mm	.021 Kg
0101 08 13	8 mm	1/4"	8 mm	17 mm	14 mm	19.5 mm	9 mm	.031 Kg
0101 08 17	8 mm	3/8"	11 mm	22 mm	14 mm	20 mm	10.5 mm	.043 Kg
0101 10 13	10 mm	1/4"	8 mm	17 mm	19 mm	24 mm	11 mm	.048 Kg
0101 10 17	10 mm	3/8"	11 mm	22 mm	19 mm	24 mm	11.5 mm	.061 Kg
0101 12 13	12 mm	1/4"	8 mm	19 mm	22 mm	24 mm	11 mm	.061 Kg
0101 12 17	12 mm	3/8"	11 mm	22 mm	22 mm	24 mm	11.5 mm	.069 Kg
0101 12 21	12 mm	1/2"	12 mm	27 mm	22 mm	24 mm	12 mm	.089 Kg
0101 14 17	14 mm	3/8"	11 mm	22 mm	24 mm	25 mm	10.5 mm	.075 Kg
0101 14 21	14 mm	1/2"	12 mm	27 mm	24 mm	25 mm	11 mm	.093 Kg
0101 16 17	16 mm	3/8"	11 mm	22 mm	27 mm	27 mm	12 mm	.092 Kg
0101 16 21	16 mm	1/2"	12 mm	27 mm	27 mm	27 mm	12.5 mm	.110 Kg
0101 18 21	18 mm	1/2"	12 mm	27 mm	30 mm	29.5 mm	12.5 mm	.131 Kg
0101 18 27	18 mm	3/4"	13 mm	32 mm	30 mm	29.5 mm	13 mm	.154 Kg
0101 22 27	22 mm	3/4"	13 mm	32 mm	36 mm	32 mm	13 mm	.197 Kg
0101 22 34	22 mm	1"	15 mm	41 mm	36 mm	31 mm	13.5 mm	.259 Kg

With pre-assembled polyamide washer
Sealing washers 0602 can be found in the sub-chapter “Adaptors and Manifolds”.
