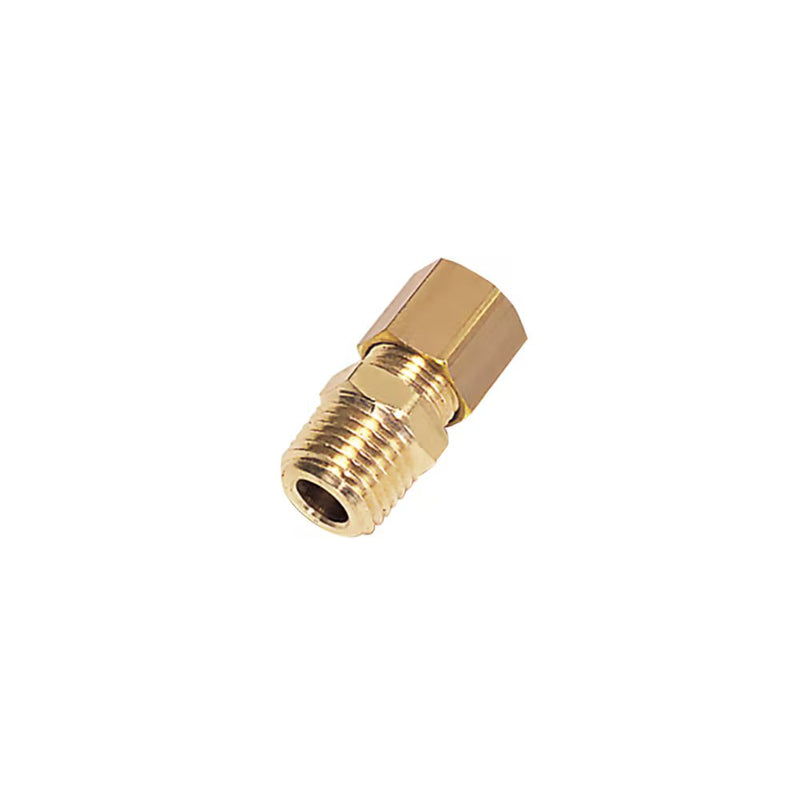

0105 08 11 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male NPT Thread | 13 mm Hex (F) | 14 mm Hex (F1) | Straight | Brass

0105 08 11 by Parker | Legris Stud Fitting | 8 mm Tube Size x 1/8" Male NPT Thread | 13 mm Hex (F) | 14 mm Hex (F1) | Straight | Brass | Pack of 10

Save $66.15 Save $66.15
$165.37
$165.37 - $165.37
$165.37
$99.22
$99.22 - $99.22
$99.22

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0105 Stud Fitting, Male NPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0105 08 11 Parker | 10 |
Series: 0105 Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F F1 H (max) H1 Kg
0105 06 11 6 mm 1/8" 11 mm 13 mm 18 mm 7.5 mm .018 Kg
0105 06 14 6 mm 1/4" 14 mm 13 mm 18 mm 7.5 mm .027 Kg
0105 08 11 8 mm 1/8" 13 mm 14 mm 21 mm 7 mm .021 Kg
0105 08 14 8 mm 1/4" 14 mm 14 mm 18.5 mm 7 mm .026 Kg
0105 10 14 10 mm 1/4" 17 mm 19 mm 24 mm 9 mm .047 Kg
0105 10 18 10 mm 3/8" 17 mm 19 mm 24 mm 9 mm .047 Kg
0105 10 22 10 mm 1/5" 22 mm 19 mm 25 mm 10 mm .066 Kg
