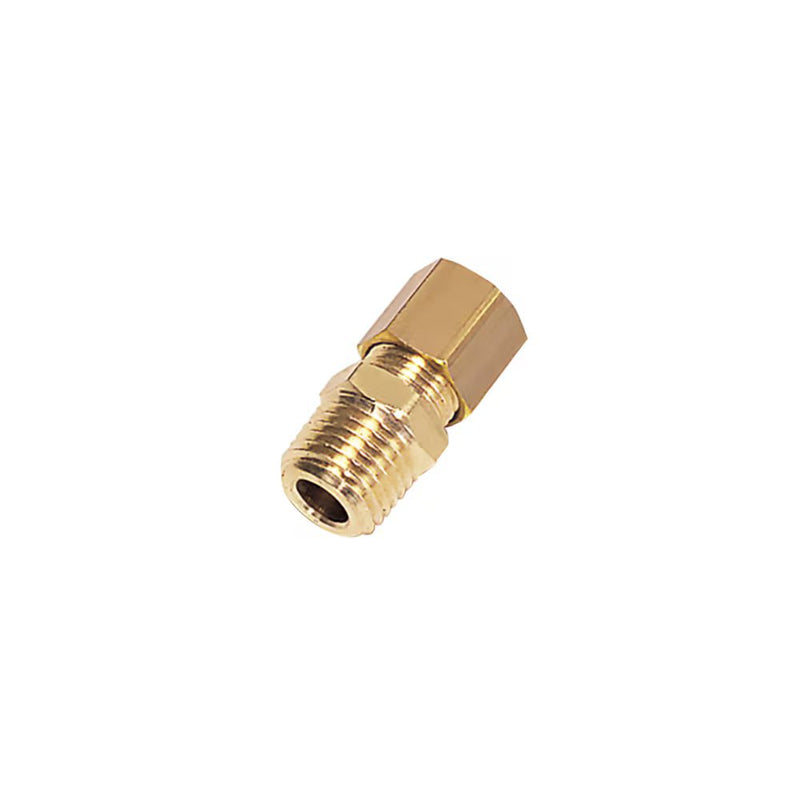

0105 10 14 by Parker | Legris Stud Fitting | 10 mm Tube Size x 1/4" Male NPT Thread | 17 mm Hex (F) | 19 mm Hex (F1) | Straight | Brass | Pack of 10

Save $16.96

$125.09

$125.09 - $125.09

$125.09

$108.13

$108.13 - $108.13

$108.13

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0105 Stud Fitting, Male NPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0105 10 14 Parker \| 10 \|
Series:	0105 Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	F	F1	H (max)	H1	Kg
0105 06 11	6 mm	1/8"	11 mm	13 mm	18 mm	7.5 mm	.018 Kg
0105 06 14	6 mm	1/4"	14 mm	13 mm	18 mm	7.5 mm	.027 Kg
0105 08 11	8 mm	1/8"	13 mm	14 mm	21 mm	7 mm	.021 Kg
0105 08 14	8 mm	1/4"	14 mm	14 mm	18.5 mm	7 mm	.026 Kg
0105 10 14	10 mm	1/4"	17 mm	19 mm	24 mm	9 mm	.047 Kg
0105 10 18	10 mm	3/8"	17 mm	19 mm	24 mm	9 mm	.047 Kg
0105 10 22	10 mm	1/5"	22 mm	19 mm	25 mm	10 mm	.066 Kg
