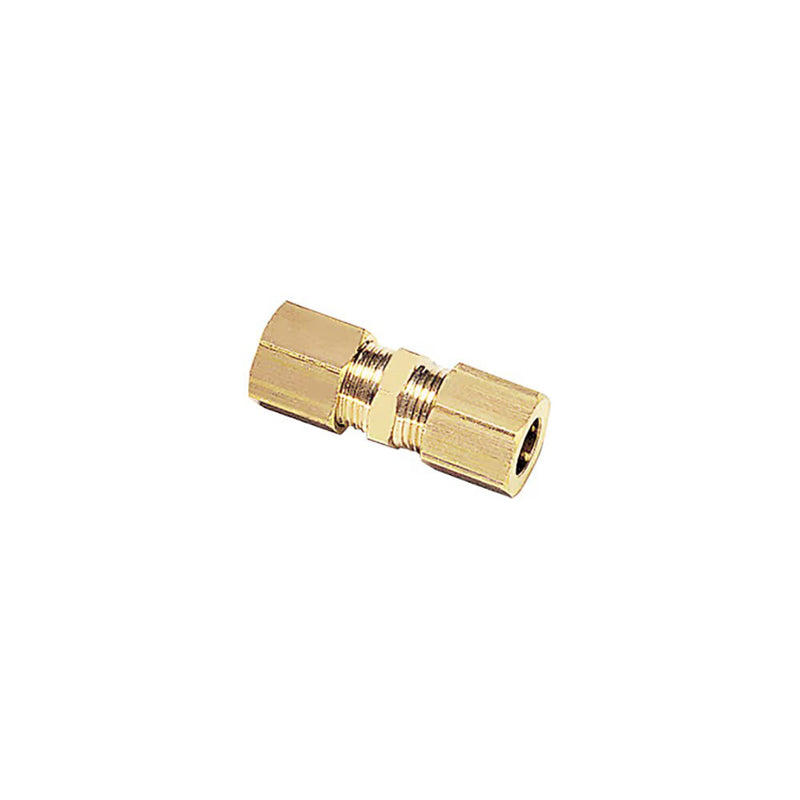

0106 04 00 by Parker | Legris Tube-to-Tube Fitting | 4 mm Tube Size | 10 mm Hex (F) | 10 mm Hex (F1) | 28 mm Length | Straight | Brass

0106 04 00 by Parker | Legris Tube-to-Tube Fitting | 4mm Tube Size | 10mm Hex (F) | 10mm Hex (F1) | 28mm Length | Straight | Brass | Pack of 10

Save $33.39 Save $33.39
$83.48
$83.48 - $83.48
$83.48
$50.09
$50.09 - $50.09
$50.09

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0106 Equal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 0106 04 00 Parker | 10 |
Series: 0106 Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: Fuel Grade
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD F F1 L (max) L1 Kg
0106 04 00 4 mm 10 mm 10 mm 28 mm 10 mm .016 Kg
0106 05 00 5 mm 11 mm 12 mm 31 mm 11 mm .023 Kg
0106 06 00 6 mm 11 mm 13 mm 32 mm 11 mm .026 Kg
0106 08 00 8 mm 13 mm 14 mm 36 mm 10 mm .031 Kg
0106 10 00 10 mm 17 mm 19 mm 42 mm 13 mm .070 Kg
0106 12 00 12 mm 19 mm 22 mm 42 mm 13 mm .091 Kg
0106 14 00 14 mm 22 mm 24 mm 45 mm 11 mm .103 Kg
0106 15 00 15 mm 22 mm 24 mm 45 mm 11 mm .096 Kg
0106 16 00 16 mm 24 mm 27 mm 48 mm 13 mm .145 Kg
0106 18 00 18 mm 27 mm 30 mm 53 mm 14 mm .190 Kg
0106 20 00 20 mm 30 mm 32 mm 56 mm 14 mm .21 Kg
0106 22 00 22 mm 32 mm 36 mm 60 mm 14 mm .281 Kg
0106 28 00 28 mm 41 mm 42 mm 64 mm 14 mm .398 Kg
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
