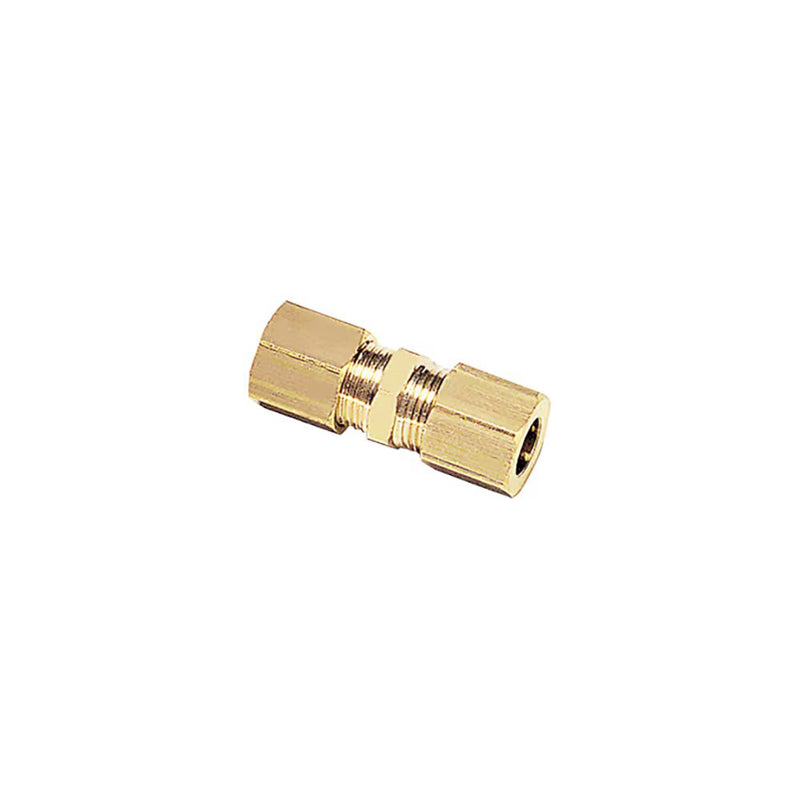

0106 08 00 by Parker | Legris Tube-to-Tube Fitting | 8mm Tube Size | 13mm Hex (F) | 14mm Hex (F1) | 36mm Length | Straight | Brass | Pack of 10

Save $49.72

$124.30

$124.30 - $124.30

$124.30

$74.58

$74.58 - $74.58

$74.58

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0106 Equal Tube-to-Tube Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 0106 08 00 Parker \| 10 \|
Series:	0106 Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	F	F1	L (max)	L1	Kg
0106 04 00	4 mm	10 mm	10 mm	28 mm	10 mm	.016 Kg
0106 05 00	5 mm	11 mm	12 mm	31 mm	11 mm	.023 Kg
0106 06 00	6 mm	11 mm	13 mm	32 mm	11 mm	.026 Kg
0106 08 00	8 mm	13 mm	14 mm	36 mm	10 mm	.031 Kg
0106 10 00	10 mm	17 mm	19 mm	42 mm	13 mm	.070 Kg
0106 12 00	12 mm	19 mm	22 mm	42 mm	13 mm	.091 Kg
0106 14 00	14 mm	22 mm	24 mm	45 mm	11 mm	.103 Kg
0106 15 00	15 mm	22 mm	24 mm	45 mm	11 mm	.096 Kg
0106 16 00	16 mm	24 mm	27 mm	48 mm	13 mm	.145 Kg
0106 18 00	18 mm	27 mm	30 mm	53 mm	14 mm	.190 Kg
0106 20 00	20 mm	30 mm	32 mm	56 mm	14 mm	.21 Kg
0106 22 00	22 mm	32 mm	36 mm	60 mm	14 mm	.281 Kg
0106 28 00	28 mm	41 mm	42 mm	64 mm	14 mm	.398 Kg
