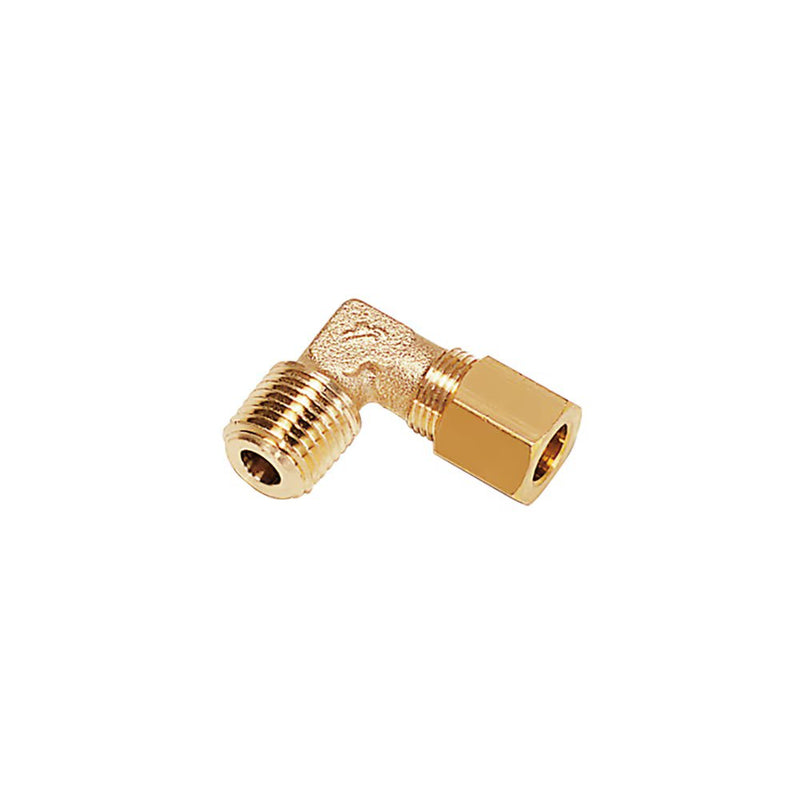

0109 06 11 by Parker | Legris Stud Fitting | 6 mm Tube Size x 1/8" Male NPT Thread | 13 mm Hex | 90° Elbow | Brass

0109 06 11 by Parker | Legris Stud Fitting | 6mm Tube Size x 1/8" Male NPT Thread | 13mm Hex | 90° Elbow | Brass | Pack of 10

Save $68.59 Save $68.59
$171.48
$171.48 - $171.48
$171.48
$102.89
$102.89 - $102.89
$102.89

by Parker Hannifin
Brass Compression Fittings / Stud Fittings:0109 Stud Elbow, Male NPT Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0109 06 11 Parker | 10 |
Series: 0109 Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade
Technical Characteristics:
  • Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants
  • Working Pressure: Vacuum to 550 bar
  • Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:
  • 22 configurations
  • Excellent sealing due to the tightening of the olive onto the tube
  • Metallic sealing for optimum service life, pressure, and temperature ranges
  • Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc.
  • Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:
  • RoHS
  • PED
  • REACH
Component Materials:
Part Number ØD C F H J L (max) L1 Kg
0109 06 11 6 mm 1/8" 13 mm 18 mm 8 mm 22 mm 11 mm .021 Kg
0109 06 14 6 mm 1/4" 13 mm 21.5 mm 10 mm 22 mm 12 mm .030 Kg
0109 08 11 8 mm 1/8" 14 mm 18.5 mm 10 mm 28 mm 15 mm .027 Kg
0109 08 14 8 mm 1/4" 14 mm 22 mm 10 mm 28 mm 15 mm .032 Kg
0109 10 14 10 mm 1/4" 19 mm 25 mm 12 mm 30 mm 14.5 mm .054 Kg
