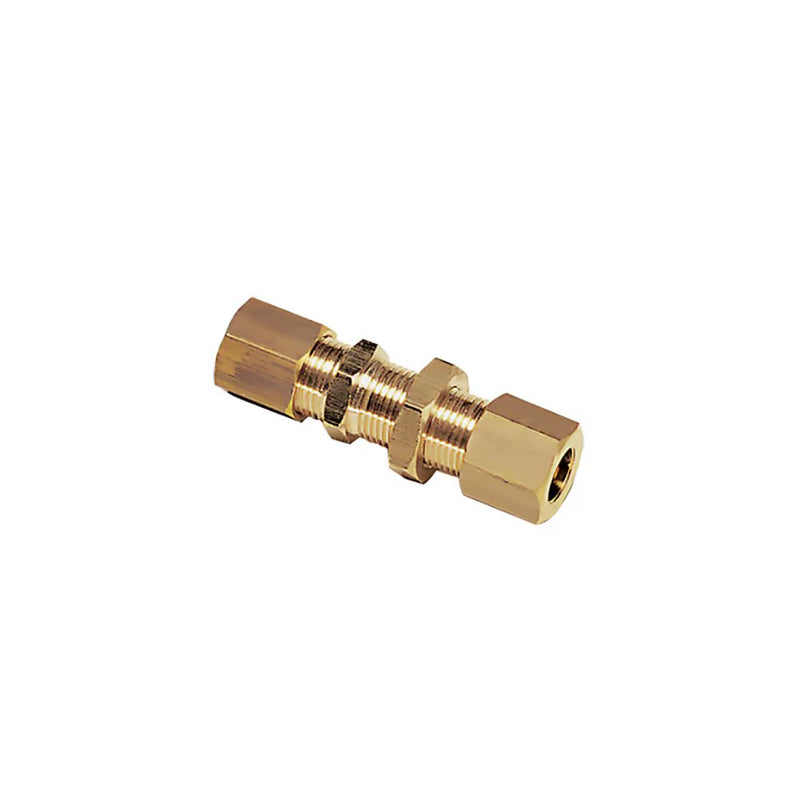

0116 14 00 by Parker | Legris Bulkhead Connector | 14mm Tube Size | 24mm Hex (F) | 24mm Hex (F1) | 24mm Hex (F2) | 60mm Length | Straight | Brass | Pack of 10

Save $173.80

$434.50

$434.50 - $434.50

$434.50

$260.70

$260.70 - $260.70

$260.70

by Parker Hannifin
Brass Compression Fittings / Tube-to-Tube Fittings:0116 Equal Bulkhead Connector

Package Quantity: 10 Units

Specifications for Variant SKU: 0116 14 00 Parker \| 10 \|
Series:	0116 Series
Shape (Orientation):	Straight
Material(s):	Brass
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	F	F1	F2	L (max)	L1 (max)	L2	L3	ØT (min)	Kg
0116 04 00	4 mm	10 mm	10 mm	13 mm	27 mm	17 mm	7 mm	17 mm	8.3 mm	.024 Kg
0116 05 00	5 mm	13 mm	12 mm	14 mm	28 mm	28 mm	7.5 mm	17.5 mm	10.3 mm	.035 Kg
0116 06 00	6 mm	13 mm	13 mm	14 mm	28 mm	19 mm	7.5 mm	17.5 mm	10.3 mm	.037 Kg
0116 08 00	8 mm	14 mm	14 mm	17 mm	29 mm	20 mm	7 mm	17 mm	12.3 mm	.045 Kg
0116 10 00	10 mm	19 mm	19 mm	22 mm	33 mm	25 mm	9 mm	19 mm	16.5 mm	.100 Kg
0116 12 00	12 mm	22 mm	22 mm	22 mm	33 mm	25 mm	9 mm	19 mm	18.5 mm	.121 Kg
0116 14 00	14 mm	24 mm	24 mm	24 mm	35 mm	25 mm	8 mm	18 mm	20.5 mm	.143 Kg
0116 15 00	15 mm	24 mm	24 mm	24 mm	35 mm	25 mm	8 mm	18 mm	20.5 mm	.134 Kg
0116 16 00	16 mm	27 mm	27 mm	27 mm	36 mm	28 mm	9.5 mm	19.5 mm	22.5 mm	.192 Kg
0116 18 00	18 mm	27 mm	30 mm	30 mm	40 mm	30 mm	10.5 mm	20.5 mm	24.5 mm	.238 Kg
0116 22 00	22 mm	36 mm	36 mm	36 mm	42 mm	32 mm	11 mm	21 mm	30.5 mm	.379 Kg
