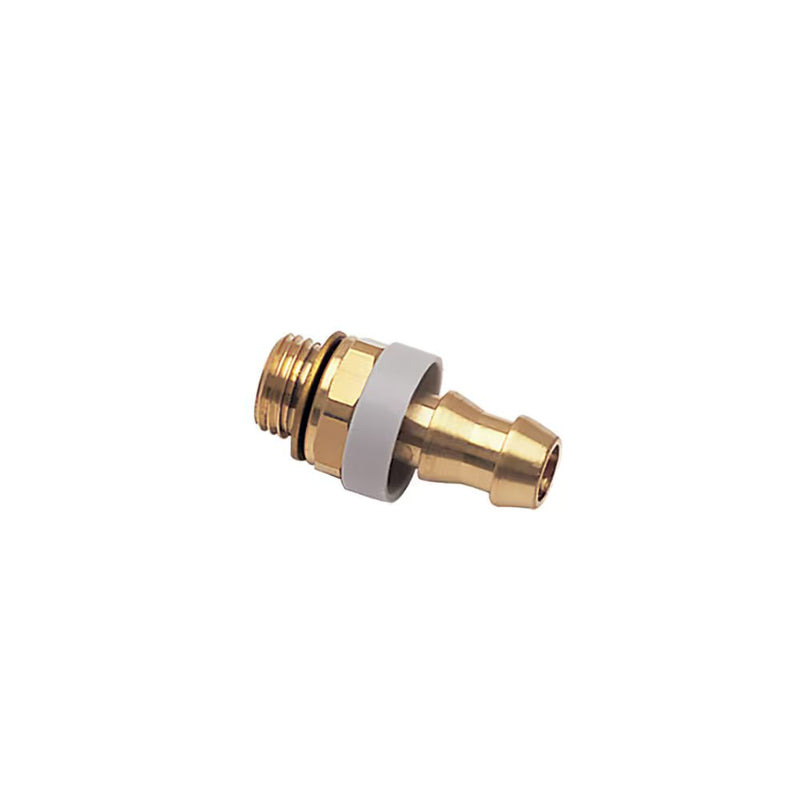

0133 69 27 39 by Parker | Legris Self-Fastening Barb Connector w/ Material Seal | 19.1 mm Tube ID x 27 mm Tube OD x 3/4" Male BSPP Thread | 32 mm Hex | 65.5 mm Length | Straight | Brass | Pack of 5

Save $71.31

$178.27

$178.27 - $178.27

$178.27

$106.96

$106.96 - $106.96

$106.96

by Parker Hannifin
Self-Fastening Hose Barb Connectors:0133..39 Self-Fastening Bar Connector with BiMaterial Seal, Male BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0133 69 27 39 Parker \| 5 \|
Series:	0133 39 Series
Shape (Orientation):	Straight
Material(s):	Brass, Polymer, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Spark Resistance

Technical Characteristics:	Compatible Fluids: Coolants, compressed air Working Pressure: 0 to 16 bar Working Temperature: 0°C to +100°C -20°C to +70°C (air)
Advantages:	Easy to use Spark resistant Economic and time saving solution Mechanical properties proven for use in industrial robotic installations Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:	Body: Brass Collar: Engineering polymer


Part Number	ØD1	ØD2	C	E	F	G	H	L	ØT	Kg
0133 56 10 39	6.3 mm	13 mm	1/8"	5.5 mm	13 mm	14 mm	20 mm	31.5 mm	4.8 mm	.012 Kg
0133 56 13 39	6.3 mm	13 mm	1/4"	7 mm	17 mm	17 mm	20 mm	33.5 mm	4.8 mm	.017 Kg
0133 60 17 39	9.5 mm	16 mm	3/8"	9.5 mm	22 mm	22 mm	24 mm	42.5 mm	7.5 mm	.038 Kg
0133 62 21 39	12.7 mm	19 mm	1/2"	10.5 mm	27 mm	26 mm	28 mm	48.5 mm	10 mm	.059 Kg
0133 66 21 39	15.9 mm	23 mm	1/2"	10.5 mm	27 mm	26 mm	36.5 mm	57 mm	13.5 mm	.064 Kg
0133 69 27 39	19.1 mm	27 mm	3/4"	11.5 mm	32 mm	32 mm	43 mm	65.5 mm	16 mm	.111 Kg

Thread with bi-material seal and polymer collar
Bi-material sealing washers part number 0139 can be found in the sub-chapter “Adaptors and Manifolds”
