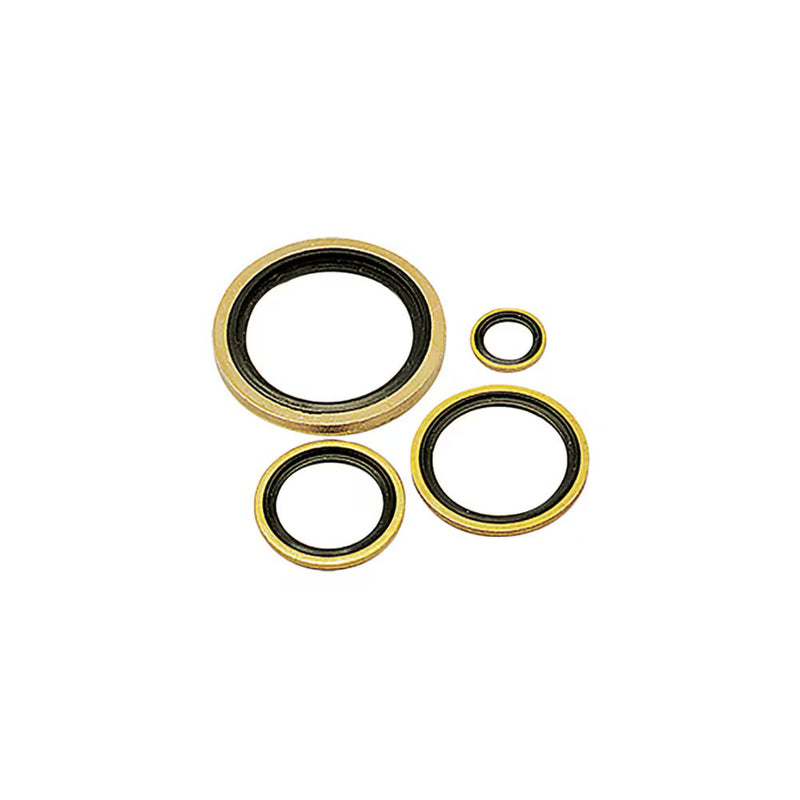

0139 34 00 by Parker | Legris Bi-Material Captive Sealing Washer | 1" Thread Size | 39.6 mm OD | Zinc-Plated Steel

0139 34 00 by Parker | Legris Bi-Material Captive Sealing Washer | 1" Thread Size | 39.6 mm OD | Zinc-Plated Steel | Pack of 10

Save $2.62 Save $2.62
$146.09
$146.09 - $146.09
$146.09
$143.47
$143.47 - $143.47
$143.47

by Parker Hannifin
Sealing Accessories:0139 Bi-Material Captive Sealing Washer

Package Quantity: 10 Units

Specifications for Variant SKU: 0139 34 00 Parker | 10 |
Series: 0139 Series
Shape (Orientation): No Orientation
Material(s): Zinc-Plated Steel
Seal Material(s): Buna-N/Nitrile Rubber
Adapters and Manifolds:
Part Number C G K K1 Kg
0139 10 00 1/8" 14 mm 1 mm 1.7 mm .001 Kg
0139 13 00 1/4" 17 mm 1 mm 1.7 mm .001 Kg
0139 17 00 3/8" 22 mm 1.2 mm 2.1 mm .001 Kg
0139 21 00 1/2" 26 mm 1.6 mm 2.5 mm .002 Kg
0139 27 00 3/4" 32 mm 1.5 mm 2.5 mm .003 Kg
0139 34 00 1" 39.6 mm 1.7 mm 2.6 mm .003 Kg

Maximum allowable working pressure: 250 bar

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
