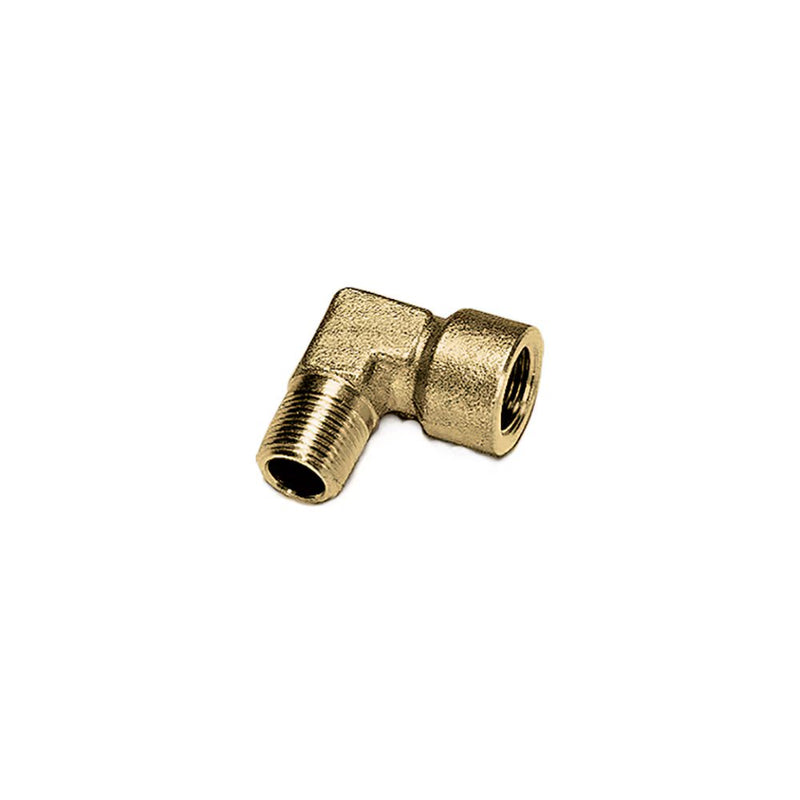

0144 10 10 by Parker | Legris Equal Stud Fitting | 1/8" Male BSPT Thread x 1/8" Female BSPP Thread | 90° Elbow | Brass | Pack of 10

Save $19.60

$150.67

$150.67 - $150.67

$150.67

$131.07

$131.07 - $131.07

$131.07

by Parker Hannifin
Brass Adapters:0144 Equal Stud Elbow, Male BSPT/Female BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 0144 10 10 Parker \| 10 \|
Series:	0144 Series
Shape (Orientation):	90° Elbow
Material(s):	Brass


Adapters and Manifolds:


Part Number	C1	C2	E	G	H	J	L	Kg
0144 10 10	1/8"	1/8"	7.5 mm	16.5 mm	23 mm	12 mm	22.5 mm	.018 Kg
0144 13 13	1/4"	1/4"	11 mm	18.5 mm	26 mm	15 mm	26.5 mm	.056 Kg
0144 17 17	3/8"	3/8"	11.5 mm	23.5 mm	30 mm	19 mm	31.5 mm	.086 Kg
0144 21 21	1/2"	1/2"	15 mm	28 mm	35 mm	23 mm	34.5 mm	.139 Kg
0144 27 27	3/4"	3/4"	16.5 mm	34 mm	40 mm	27 mm	43.5 mm	.153 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
