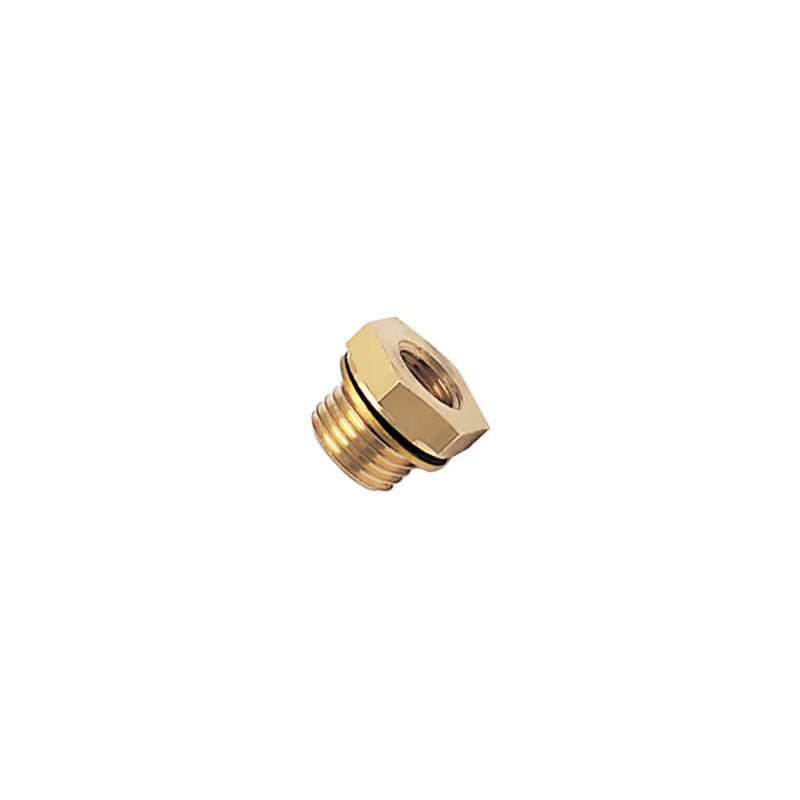

0168 17 10 39 by Parker | Legris Reducer w/ Bi-Material Seal | 3/8" Male BSPP Thread x 1/8" Female BSPP Thread | 19 mm Hex | 15 mm Length | Straight | Brass | Pack of 10

Save $4.11

$45.25

$45.25 - $45.25

$45.25

$41.14

$41.14 - $41.14

$41.14

by Parker Hannifin
Brass Compression Fittings / Complementary Fittings:0168..39 Reducer, with Bi-Material Seal, Male BSPP Thread/Female BSPP and Metric Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 0168 17 10 39 Parker \| 10 \|
Series:	0168 39 Series
Shape (Orientation):	Straight
Material(s):	Brass, Zinc-Plated Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Fuel Grade

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	C1	C2	E	F	H	Kg
0168 13 19 39	1/4"	M5x0.8	8 mm	14 mm	4.5 mm	.009 Kg
0168 13 10 39	1/4"	1/8"	8 mm	17 mm	5 mm	.012 Kg
0168 17 10 39	3/8"	1/8"	10 mm	19 mm	5 mm	.020 Kg
0168 21 10 39	1/2"	1/8"	12 mm	24 mm	7.5 mm	.053 Kg
0168 21 13 39	1/2"	1/4"	12 mm	24 mm	7.5 mm	.044 Kg
0168 21 17 39	1/2"	3/8	12 mm	24 mm	7.5 mm	.031 Kg
0168 27 17 39	3/4"	3/8	12 mm	32 mm	9.5 mm	.086 Kg

With bi-material seal. Bi-material washers part number 0139 can be found in sub-chapter “Adaptors and Manifolds”
