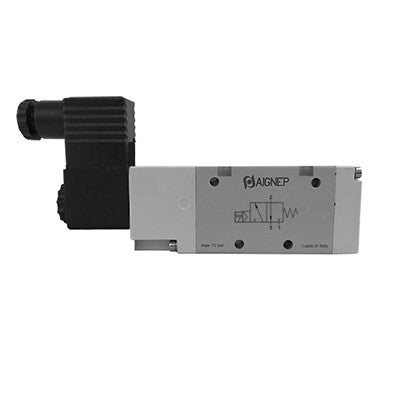

01VA0303N0401 AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Ext Pilot 1/4" NPTF | 24V AC/5VA coil | Black Con

01VA0303N0401 by AIGNEP | 01V Control Valves Series | 3/2 Normally Closed Single Solenoid Ext Pilot 1/4" NPTF | 24V AC/5VA coil | Black Con

Save $6.29 Save $6.29
$62.86
$62.86 - $62.86
$62.86
$56.57
$56.57 - $56.57
$56.57
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 01VA03NC03N0401 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic

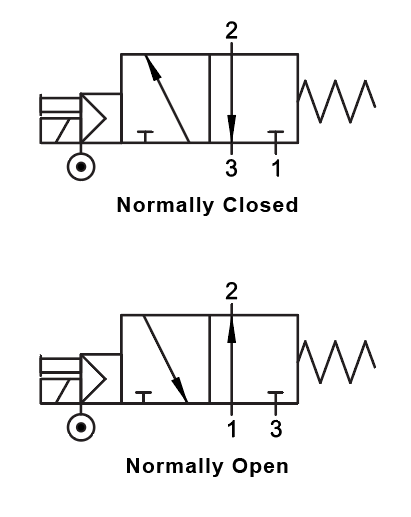

SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VA03NC02N0101 01VA03NC02N0102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC02N0201 01VA03NC02N0202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC02N0301 01VA03NC02N0302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC02N0401 01VA03NC02N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC02N0501 01VA03NC02N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC02N0601 01VA03NC02N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/8" NPTF
01VA03NC03N0101 01VA03NC03N0102 12V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NC03N0201 01VA03NC03N0202 24V DC 3W 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NC03N0301 01VA03NC03N0302 24V DC 2W 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NC03N0401 01VA03NC03N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NC03N0501 01VA03NC03N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
01VA03NC03N0601 01VA03NC03N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Closed (NC) 1/4" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
