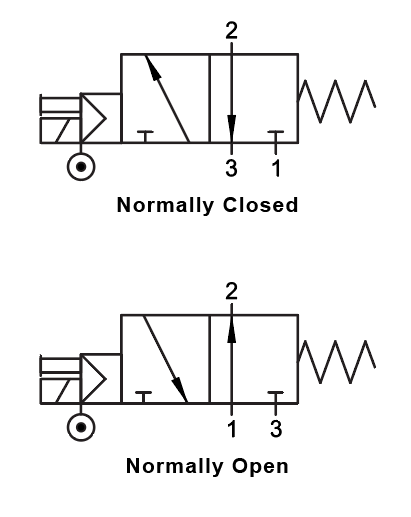

01VA03NO02N0102 AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot 1/8" NPTF | 12V DC/3 W coil | LED Con
01VA03NO02N0102 by AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot 1/8" NPTF | 12V DC/3 W coil | LED Con
01VA03NO02N0102 AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot 1/8" NPTF | 12V DC/3 W coil | LED Con

01VA03NO02N0102 by AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot 1/8" NPTF | 12V DC/3 W coil | LED Con

Save $44.51 Save $44.51
$111.27
$111.27 - $111.27
$111.27
$66.76
$66.76 - $66.76
$66.76
Specifications for Variant SKU: 01VA03NO02N0102 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Plastic
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VA03NO02N0101 01VA03NO02N0102 12V DC 3W 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO02N0201 01VA03NO02N0202 24V DC 3W 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO02N0301 01VA03NO02N0302 24V DC 2W 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO02N0401 01VA03NO02N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO02N0501 01VA03NO02N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO02N0601 01VA03NO02N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Opened (NO) 1/8" NPTF
01VA03NO03N0101 01VA03NO03N0102 12V DC 3W 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA03NO03N0201 01VA03NO03N0202 24V DC 3W 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA03NO03N0301 01VA03NO03N0302 24V DC 2W 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA03NO03N0401 01VA03NO03N0402 24V AC 5VA 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA03NO03N0501 01VA03NO03N0502 110V AC 5VA 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
01VA03NO03N0601 01VA03NO03N0602 220V AC 5VA 3/2 Monostable Spring Return Normally Opened (NO) 1/4" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
