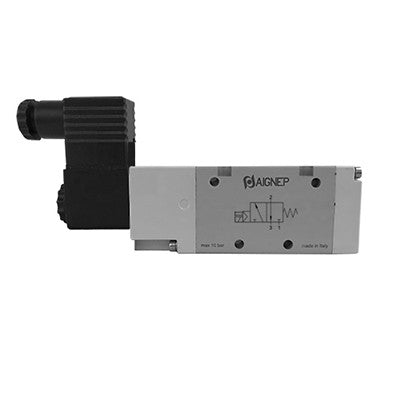

01VA03NO030201 AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot G-Thread 1/4" | 24V DC/3W coil | Black Con

01VA03NO030201 by AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot G-Thread 1/4" | 24V DC/3W coil | Black Con

Name: 01VA03NO030201 by AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Ext Pilot G-Thread 1/4" | 24V DC/3W coil | Black Con
Brand: AIGNEP
SKU: 01VA03NO030201 AIGNEP
Price: 62.23 USD
Availability: InStock

Save $0.63

$62.86

$62.86 - $62.86

$62.86

$62.23

$62.23 - $62.23

$62.23

Quantity

Specifications for Variant SKU: 01VA03NO030201 AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s):	Plastic

SOLENOID ASSISTED

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Function	Size
01VA03NO020101	01VA03NO020102	12V DC	3W	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/8"
01VA03NO020201	01VA03NO020202	24V DC	3W	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/8"
01VA03NO020301	01VA03NO020302	24V DC	2W	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/8"
01VA03NO020401	01VA03NO020402	24V AC	5VA	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/8"
01VA03NO020501	01VA03NO020502	110V AC	5VA	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/8"
01VA03NO020601	01VA03NO020602	220V AC	5VA	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/8"
01VA03NO030101	01VA03NO030102	12V DC	3W	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/4"
01VA03NO030201	01VA03NO030202	24V DC	3W	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/4"
01VA03NO030301	01VA03NO030302	24V DC	2W	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/4"
01VA03NO030401	01VA03NO030402	24V AC	5VA	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/4"
01VA03NO030501	01VA03NO030502	110V AC	5VA	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/4"
01VA03NO030601	01VA03NO030602	220V AC	5VA	3/2	Monostable Spring Return	Normally Opened (NO)	G 1/4"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
