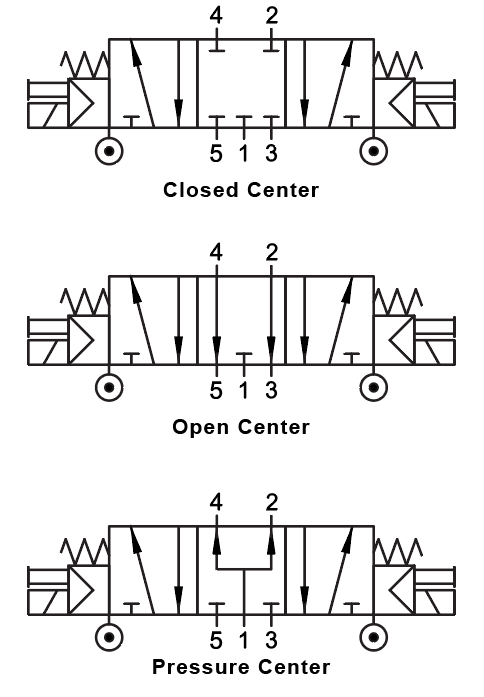

01VA07PC020101 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | G-Thread 1/8" | 12V DC/3 W coil | Black Con
01VA07PC020101 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | G-Thread 1/8" | 12V DC/3 W coil | Black Con
01VA07PC020101 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | G-Thread 1/8" | 12V DC/3 W coil | Black Con

01VA07PC020101 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | G-Thread 1/8" | 12V DC/3 W coil | Black Con

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 01VA07PC020101 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s): Plastic
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VA07PC020101 12V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VA07PC020201 24V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VA07PC020301 24V DC 2W 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VA07PC020401 24V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VA07PC020501 110V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VA07PC020601 220V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/8"
01VA07PC030101 12V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VA07PC030201 24V DC 3W 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VA07PC030301 24V DC 2W 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VA07PC030401 24V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VA07PC030501 110V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"
01VA07PC030601 220V AC 5VA 5/3 Monostable Spring Return Pressure Control (PC) G 1/4"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
