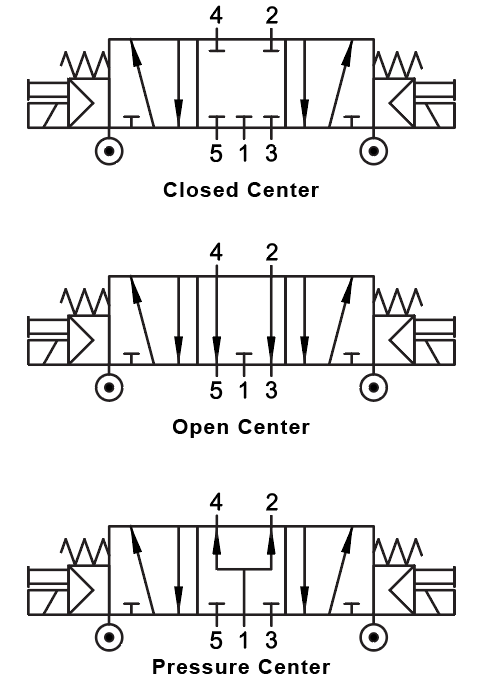

01VA07PC02N0602 AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | 1/8" NPT | 220V AC/5VA coil | LED Con

01VA07PC02N0602 by AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Pressure Center | Spring Centered | 1/8" NPT | 220V AC/5VA coil | LED Con

Save $9.71

$97.08

$97.08 - $97.08

$97.08

$87.37

$87.37 - $87.37

$87.37

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 01VA07PC02N0602 AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/8in Female NPT, 1/8in Female NPT, Some Ends Match
Material(s):	Plastic

SOLENOID ASSISTED

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Function	Size
01VA07PC02N0101	01VA07PC02N0102	12V DC	3W	5/3	Monostable Spring Positions	Pressure Control (PC)	1/8" NPTF
01VA07PC02N0201	01VA07PC02N0202	24V DC	3W	5/3	Monostable Spring Positions	Pressure Control (PC)	1/8" NPTF
01VA07PC02N0301	01VA07PC02N0302	2W	5/3	Monostable Spring Positions	Pressure Control (PC)	1/8" NPTF
01VA07PC02N0401	01VA07PC02N0402	24V AC	5VA	5/3	Monostable Spring Positions	Pressure Control (PC)	1/8" NPTF
01VA07PC02N0501	01VA07PC02N0502	110V AC	5VA	5/3	Monostable Spring Positions	Pressure Control (PC)	1/8" NPTF
01VA07PC02N0601	01VA07PC02N0602	220V AC	5VA	5/3	Monostable Spring Positions	Pressure Control (PC)	1/8" NPTF
01VA07PC03N0101	01VA07PC03N0102	12V DC	3W	5/3	Monostable Spring Positions	Pressure Control (PC)	1/4" NPTF
01VA07PC03N0201	01VA07PC03N0202	24V DC	3W	5/3	Monostable Spring Positions	Pressure Control (PC)	1/4" NPTF
01VA07PC03N0301	01VA07PC03N0302	24V DC	2W	5/3	Monostable Spring Positions	Pressure Control (PC)	1/4" NPTF
01VA07PC03N0401	01VA07PC03N0402	24V AC	5VA	5/3	Monostable Spring Positions	Pressure Control (PC)	1/4" NPTF
01VA07PC03N0501	01VA07PC03N0502	110V AC	5VA	5/3	Monostable Spring Positions	Pressure Control (PC)	1/4" NPTF
01VA07PC03N0601	01VA07PC03N0602	220V AC	5VA	5/3	Monostable Spring Positions	Pressure Control (PC)	1/4" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
