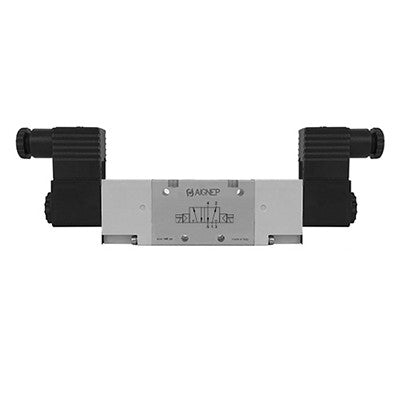

01VA150003N0301 AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot 1/4" NPTF | 24V DC/2 W coil | Black Con
01VA150003N0301 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot 1/4" NPTF | 24V DC/2 W coil | Black Con
01VA150003N0301 AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot 1/4" NPTF | 24V DC/2 W coil | Black Con

01VA150003N0301 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot 1/4" NPTF | 24V DC/2 W coil | Black Con

Save $0.90 Save $0.90
$88.97
$88.97 - $88.97
$88.97
$88.07
$88.07 - $88.07
$88.07
Specifications for Variant SKU: 01VA150003N0301 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VA150002N0101 01VA150002N0102 12V DC 3W 5/2 Two Stable Positions No Function (00) 1/8" NPTF
01VA150002N0201 01VA150002N0202 24V DC 3W 5/2 Two Stable Positions No Function (00) 1/8" NPTF
01VA150002N0301 01VA150002N0302 2W 5/2 Two Stable Positions No Function (00) 1/8" NPTF
01VA150002N0401 01VA150002N0402 24V AC 5VA 5/2 Two Stable Positions No Function (00) 1/8" NPTF
01VA150002N0501 01VA150002N0502 110V AC 5VA 5/2 Two Stable Positions No Function (00) 1/8" NPTF
01VA150002N0601 01VA150002N0602 220V AC 5VA 5/2 Two Stable Positions No Function (00) 1/8" NPTF
01VA150003N0101 01VA150003N0102 12V DC 3W 5/2 Two Stable Positions No Function (00) 1/4" NPTF
01VA150003N0201 01VA150003N0202 24V DC 3W 5/2 Two Stable Positions No Function (00) 1/4" NPTF
01VA150003N0301 01VA150003N0302 24V DC 2W 5/2 Two Stable Positions No Function (00) 1/4" NPTF
01VA150003N0401 01VA150003N0402 24V AC 5VA 5/2 Two Stable Positions No Function (00) 1/4" NPTF
01VA150003N0501 01VA150003N0502 110V AC 5VA 5/2 Two Stable Positions No Function (00) 1/4" NPTF
01VA150003N0601 01VA150003N0602 220V AC 5VA 5/2 Two Stable Positions No Function (00) 1/4" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
