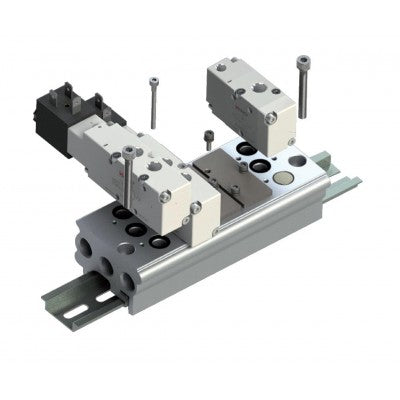

01VB000005 AIGNEP | 01V Series | 5 Sta. Fixed Length Manifold Base 1/8"

01VB000005 by AIGNEP | 01V Series | 5 Station | Fixed Length Manifold Base 1/8"

Save $28.15 Save $28.15
$70.38
$70.38 - $70.38
$70.38
$42.23
$42.23 - $42.23
$42.23
Specifications for Variant SKU: 01VB000005 AIGNEP
Series: 01V Series

DIN Rail Mounted - Manifold Bases - BSPP

Pressure Rating: 0-145 PSIG
Temperature Range: 14-140º F

Product Number Port Size Port Type Stations Length
01VB000002 1/8" BSPP 2 75 mm
01VB000003 1/8" BSPP 3 99 mm
01VB000004 1/8" BSPP 4 123 mm
01VB000005 1/8" BSPP 5 147 mm
01VB000006 1/8" BSPP 6 171 mm
01VB000007 1/8" BSPP 7 195 mm
01VB000008 1/8" BSPP 8 219 mm
01VB000009 1/8" BSPP 9 243 mm
01VB000010 1/8" BSPP 10 267 mm
01VB010002 1/4" BSPP 2 75 mm
01VB010003 1/4" BSPP 3 99 mm
01VB010004 1/4" BSPP 4 123 mm
01VB010005 1/4" BSPP 5 147 mm
01VB010006 1/4" BSPP 6 171 mm
01VB010007 1/4" BSPP 7 195 mm
01VB010008 1/4" BSPP 8 219 mm
01VB010009 1/4" BSPP 9 243 mm
01VB010010 1/4" BSPP 10 267 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
