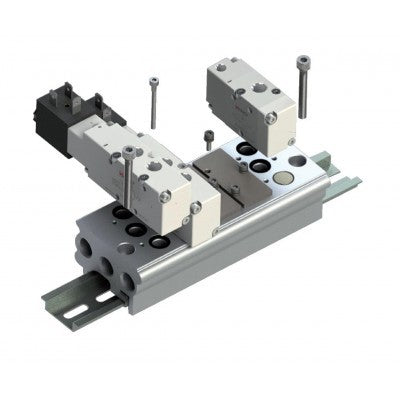

01VB000009N AIGNEP | 01V Control Valves Series Series | 9 Sta. Fixed Length Manifold Base 1/8" NPTF

01VB000009N by AIGNEP | 01V Control Valves Series Series | 9 Station | Fixed Length Manifold Base | 1/8" NPTF

Save $37.72 Save $37.72
$94.30
$94.30 - $94.30
$94.30
$56.58
$56.58 - $56.58
$56.58
Specifications for Variant SKU: 01VB000009N AIGNEP
Series: 01V Control Valves Series Series

DIN Rail Mounted - Manifold Bases - NPTF

Pressure Rating: 0-145 PSIG
Temperature Range: 14-140º F

Product Number Port Size Port Type Stations Length
01VB000002N 1/8" NPT 2 75 mm
01VB000003N 1/8" NPT 3 99 mm
01VB000004N 1/8" NPT 4 123 mm
01VB000005N 1/8" NPT 5 147 mm
01VB000006N 1/8" NPT 6 171 mm
01VB000007N 1/8" NPT 7 195 mm
01VB000008N 1/8" NPT 8 219 mm
01VB000009N 1/8" NPT 9 243 mm
01VB000010N 1/8" NPT 10 267 mm
01VB010002N 1/4" NPT 2 75 mm
01VB010003N 1/4" NPT 3 99 mm
01VB010004N 1/4" NPT 4 123 mm
01VB010005N 1/4" NPT 5 147 mm
01VB010006N 1/4" NPT 6 171 mm
01VB010007N 1/4" NPT 7 195 mm
01VB010008N 1/4" NPT 8 219 mm
01VB010009N 1/4" NPT 9 243 mm
01VB010010N 1/4" NPT 10 267 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
