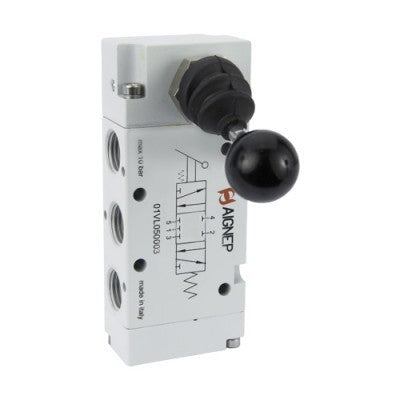

01VL07PC03 AIGNEP | 01V Series | Pneumatic Valve | 5/3 Lever/Spring Centered Pressure Center 1/4" G-Thread Ports
01VL07PC03 by AIGNEP | 01V Series | Pneumatic Valve | 5/3 Lever/Spring Centered Pressure Center | 1/4" G-Thread Ports
01VL07PC03 AIGNEP | 01V Series | Pneumatic Valve | 5/3 Lever/Spring Centered Pressure Center 1/4" G-Thread Ports

01VL07PC03 by AIGNEP | 01V Series | Pneumatic Valve | 5/3 Lever/Spring Centered Pressure Center | 1/4" G-Thread Ports

Save $34.79 Save $34.79
$86.97
$86.97 - $86.97
$86.97
$52.18
$52.18 - $52.18
$52.18
Specifications for Variant SKU: 01VL07PC03 AIGNEP
Series: 01V Series
Ends Configuration: 1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s): Plastic
90° LEVER VALVE
Technical Characteristics:
Operating Pressure: Vacuum ÷ 10 bar
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
• 90° Lever Valve

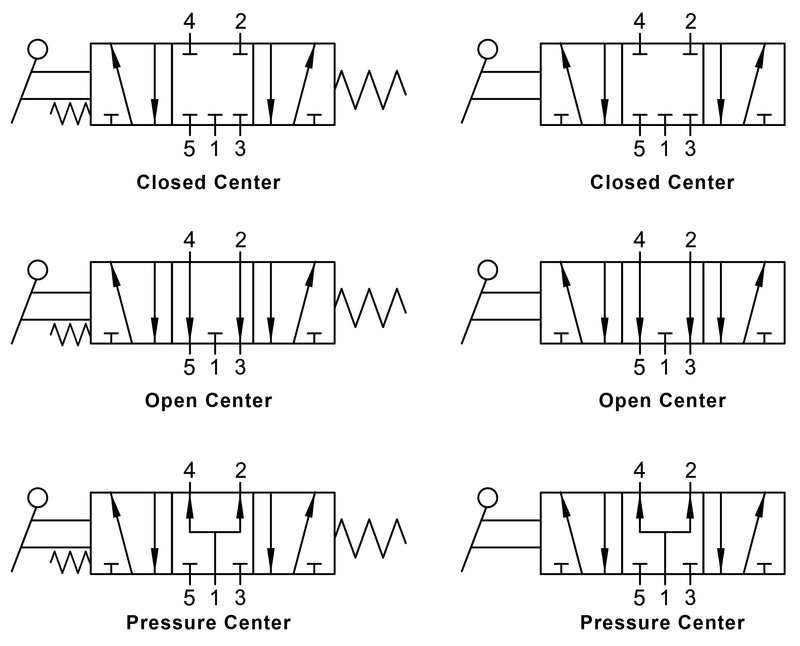

Part Number Ways Reactuation Function Size
01VL03NC02 3/2 Monostable Spring Return Normally Closed (NC) 1/8"
01VL03NC03 3/2 Monostable Spring Return Normally Closed (NC) 1/4"
01VL130002 3/2 Two Stable Positions - 1/8"
01VL130003 3/2 Two Stable Positions - 1/4"
01VL050002 5/2 Monostable Spring Return - 1/8"
01VL050003 5/2 Monostable Spring Return - 1/4"
01VL150002 5/2 Monostable Spring Return - 1/8"
01VL150003 5/2 Monostable Spring Return - 1/4"
01VL07CC02 5/3 Monostable Spring Return Center Closed (CC) 1/8"
01VL07CC03 5/3 Monostable Spring Return Center Closed (CC) 1/4"
01VL07OC02 5/3 Monostable Spring Return Opened Center (OC) 1/8"
01VL07OC03 5/3 Monostable Spring Return Opened Center (OC) 1/4"
01VL07PC02 5/3 Monostable Spring Return Pressure Control (PC) 1/8"
01VL07PC03 5/3 Monostable Spring Return Pressure Control (PC) 1/4"
01VL27CC02 5/3 3 Stable Positions Center Closed (CC) 1/8"
01VL27CC03 5/3 3 Stable Positions Center Closed (CC) 1/4"
01VL27OC02 5/3 3 Stable Positions Opened Center (OC) 1/8"
01VL27OC03 5/3 3 Stable Positions Opened Center (OC) 1/4"
01VL27PC02 5/3 3 Stable Positions Pressure Control (PC) 1/8"
01VL27PC03 5/3 3 Stable Positions Pressure Control (PC) 1/4"
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
