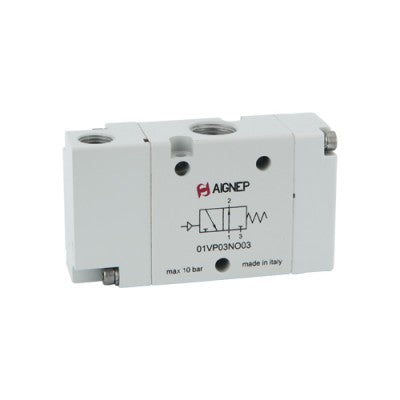

01VP03NO02 AIGNEP | 01V Control Valves Series | Pneumatic Valve | 3/2 Normally Open Single Air Pilot/Spring Return 1/8" G-Thread Ports

01VP03NO02 by AIGNEP | 01V Control Valves Series | Pneumatic Valve | 3/2 Normally Open Single Air Pilot/Spring Return 1/8" G-Thread Ports

Save $20.59 Save $20.59
$51.48
$51.48 - $51.48
$51.48
$30.89
$30.89 - $30.89
$30.89
Specifications for Variant SKU: 01VP03NO02 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/8in Female BSPP, 1/8in Female BSPP, Some Ends Match
Material(s): Plastic
PNEUMATIC VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Pressure Drive: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number Ways Reactuation Function Size
01VP03NC02 3/2 Single Air Pilot - Spring Return Normally Closed (NC) G 1/8
01VP03NC03 3/2 Single Air Pilot - Spring Return Normally Closed (NC) G 1/4
01VP03NC05 3/2 Single Air Pilot - Push/Pull Normally Closed (NC) G 1/2
01VP03NO02 3/2 Single Air Pilot - Spring Return Normally Opened (NO) G 1/8
01VP03NO03 3/2 Single Air Pilot - Spring Return Normally Opened (NO) G 1/4
01VP03NO05 3/2 Single Air Pilot - Spring Return Normally Opened (NO) G 1/2
01VP130002 3/2 Double Air Pilot - G 1/4
01VP130003 3/2 Double Air Pilot - G 1/4
01VP130005 3/2 Double Air Pilot - G 1/2
01VP050002 5/2 Single Air Pilot - Spring Return - G 1/8
01VP050003 5/2 Single Air Pilot - Spring Return - G 1/4
01VP050005 5/2 Single Air Pilot - Spring Return - G 1/2
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
