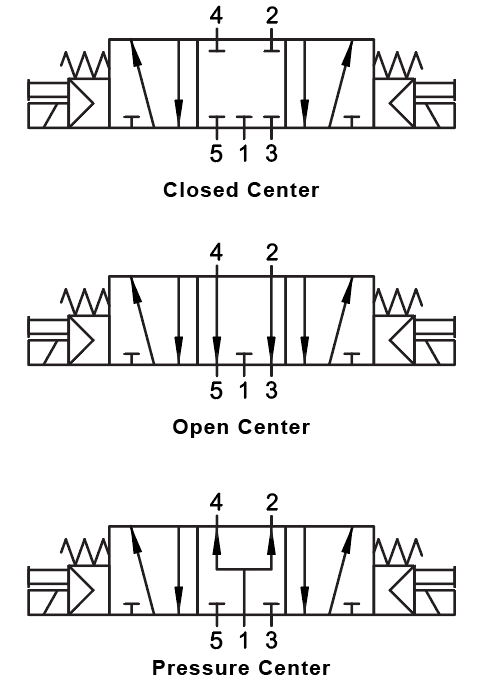

01VS07OC03N0402 AIGNEP | 01V Control Valves Series | 5/3 Open Center Double Solenoid Pilot Spring Centered 1/4" NPTF | 24V AC/5VA coil | LED Con
01VS07OC03N0402 by AIGNEP | 01V Control Valves Series | 5/3 Open Center Double Solenoid Pilot Spring Centered 1/4" NPTF | 24V AC/5VA coil | LED Con
01VS07OC03N0402 AIGNEP | 01V Control Valves Series | 5/3 Open Center Double Solenoid Pilot Spring Centered 1/4" NPTF | 24V AC/5VA coil | LED Con

01VS07OC03N0402 by AIGNEP | 01V Control Valves Series | 5/3 Open Center Double Solenoid Pilot Spring Centered 1/4" NPTF | 24V AC/5VA coil | LED Con

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00
Specifications for Variant SKU: 01VS07OC03N0402 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Function Size
01VS07OC02N0101 01VS07OC02N0102 12V DC 3W 5/3 Monostable Spring Return Open Center (OC) 1/8" NPTF
01VS07OC02N0201 01VS07OC02N0202 24V DC 3W 5/3 Monostable Spring Return Open Center (OC) 1/8" NPTF
01VS07OC02N0301 01VS07OC02N0302 24V DC 2W 5/3 Monostable Spring Return Open Center (OC) 1/8" NPTF
01VS07OC02N0401 01VS07OC02N0402 24V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/8" NPTF
01VS07OC02N0501 01VS07OC02N0502 110V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/8" NPTF
01VS07OC02N0601 01VS07OC02N0602 220V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/8" NPTF
01VS07OC03N0101 01VS07OC03N0102 12V DC 3W 5/3 Monostable Spring Return Open Center (OC) 1/4" NPTF
01VS07OC03N0201 01VS07OC03N0202 24V DC 3W 5/3 Monostable Spring Return Open Center (OC) 1/4" NPTF
01VS07OC03N0301 01VS07OC03N0302 24V DC 2W 5/3 Monostable Spring Return Open Center (OC) 1/4" NPTF
01VS07OC03N0401 01VS07OC03N0402 24V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/4" NPTF
01VS07OC03N0501 01VS07OC03N0502 110V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/4" NPTF
01VS07OC03N0601 01VS07OC03N0602 220V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/4" NPTF
01VS07OC05N0101 01VS07OC05N0102 12V DC 3W 5/3 Monostable Spring Return Open Center (OC) 1/2" NPTF
01VS07OC05N0201 01VS07OC05N0202 24V DC 3W 5/3 Monostable Spring Return Open Center (OC) 1/2" NPTF
01VS07OC05N0301 01VS07OC05N0302 24V DC 2W 5/3 Monostable Spring Return Open Center (OC) 1/2" NPTF
01VS07OC05N0401 01VS07OC05N0402 24V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/2" NPTF
01VS07OC05N0501 01VS07OC05N0502 110V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/2" NPTF
01VS07OC05n0601 01VS07OC05N0602 220V AC 5VA 5/3 Monostable Spring Return Open Center (OC) 1/2" NPTF

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
