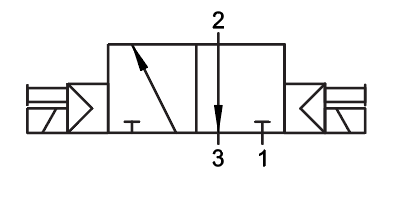

01VS1300030302 AIGNEP | 01V Control Valves Series | 3/2 | G-Thread 1/4" Double Solenoid Pilot | 24V DC/2 W coil | LED Con

01VS1300030302 by AIGNEP | 01V Control Valves Series | 3/2 | G-Thread 1/4" Double Solenoid Pilot | 24V DC/2 W coil | LED Con

Save $0.83

$82.88

$82.88 - $82.88

$82.88

$82.05

$82.05 - $82.05

$82.05

Quantity

Specifications for Variant SKU: 01VS1300030302 AIGNEP
Series:	01V Control Valves Series
Ends Configuration:	1/4in Female BSPP, 1/4in Female BSPP, Some Ends Match
Material(s):	Plastic

SOLENOID PILOT VALVE

Technical Characteristics:
Operating Rating:	0 ÷ 10 bar 0 ÷ 145 psi	Operating Pressure:	Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:	Min: 14°F (-10°C) Max: 140°F (60°C)	Component Parts and Materials:	• Anodised and painted aluminium body (1/8 - 1/4 - 1/2) • Anodised aluminium body (3/8) • Chemical nickel-plated spool • NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Size
01VS1300020101	01VS1300020102	12V DC	3W	3/2	Two Stable Positions	G 1/8"
01VS1300020201	01VS1300020202	24V DC	3W	3/2	Two Stable Positions	G 1/8"
01VS1300020301	01VS1300020302	24V DC	2W	3/2	Two Stable Positions	G 1/8"
01VS1300020401	01VS1300020402	24V AC	5VA	3/2	Two Stable Positions	G 1/8"
01VS1300020501	01VS1300020502	110V AC	5VA	3/2	Two Stable Positions	G 1/8"
01VS1300020601	01VS1300020602	220V AC	5VA	3/2	Two Stable Positions	G 1/8"
01VS1300030101	01VS1300030102	12V DC	3W	3/2	Two Stable Positions	G 1/4"
01VS1300030201	01VS1300030202	24V DC	3W	3/2	Two Stable Positions	G 1/4"
01VS1300030301	01VS1300030302	24V DC	2W	3/2	Two Stable Positions	G 1/4"
01VS1300030401	01VS1300030402	24V AC	5VA	3/2	Two Stable Positions	G 1/4"
01VS1300030501	01VS1300030502	110V AC	5VA	3/2	Two Stable Positions	G 1/4"
01VS1300030601	01VS1300030602	220V AC	5VA	3/2	Two Stable Positions	G 1/4"
01VS1300050101	01VS1300050102	12V DC	3W	3/2	Two Stable Positions	G 1/2"
01VS1300050201	01VS1300050202	24V DC	3W	3/2	Two Stable Positions	G 1/2"
01VS1500050301	01VS1300050302	24V DC	2W	3/2	Two Stable Positions	G 1/2"
01VS1500050401	01VS1300050402	24V AC	5VA	3/2	Two Stable Positions	G 1/2"
01VS1300050501	01VS1300050502	110V AC	5VA	3/2	Two Stable Positions	G 1/2"
01VS1300050601	01VS1300050602	220V AC	5VA	3/2	Two Stable Positions	G 1/2"

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
