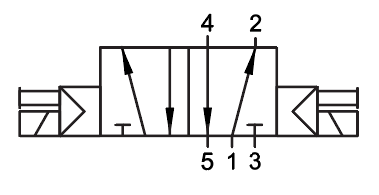

01VS150003N0102 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Pilot 1/4" NPTF | 12V DC/3 W coil | LED Con
01VS150003N0102 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Pilot 1/4" NPTF | 12V DC/3 W coil | LED Con

01VS150003N0102 by AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Pilot 1/4" NPTF | 12V DC/3 W coil | LED Con

Save $0.88 Save $0.88
$87.56
$87.56 - $87.56
$87.56
$86.68
$86.68 - $86.68
$86.68
Specifications for Variant SKU: 01VS150003N0102 AIGNEP
Series: 01V Control Valves Series
Ends Configuration: 1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s): Plastic
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating: 0 ÷ 10 bar
0 ÷ 145 psi		 Operating Pressure: Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature: Min: 14°F (-10°C)
Max: 140°F (60°C)		 Component Parts and Materials: • Anodised and painted aluminium body (1/8 - 1/4 - 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
Part Number (Black Con) Part Number (LED Con) Solenoid Voltage Minimum Power Ways Reactuation Size
01VS150002N0101 01VS150002N0102 12V DC 3W 5/2 Solenoid Pilot Valve 1/8" NPTF
01VS150002N0201 01VS150002N0202 24V DC 3W 5/2 Solenoid Pilot Valve 1/8" NPTF
01VS150002N0301 01VS150002N0302 24V DC 2W 5/2 Solenoid Pilot Valve 1/8" NPTF
01VS150002N0401 01VS150002N0402 24V AC 5VA 5/2 Solenoid Pilot Valve 1/8" NPTF
01VS150002N0501 01VS150002N0502 110V AC 5VA 5/2 Solenoid Pilot Valve 1/8" NPTF
01VS150002N0601 01VS150002N0602 220V AC 5VA 5/2 Solenoid Pilot Valve 1/8" NPTF
01VS150003N0101 01VS150003N0102 12V DC 3W 5/2 Solenoid Pilot Valve 1/4" NPTF
01VS150003N0201 01VS150003N0202 24V DC 3W 5/2 Solenoid Pilot Valve 1/4" NPTF
01VS150003N0301 01VS150003N0302 24V DC 2W 5/2 Solenoid Pilot Valve 1/4" NPTF
01VS150003N0401 01VS150003N0402 24V AC 5VA 5/2 Solenoid Pilot Valve 1/4" NPTF
01VS150003N0501 01VS150003N0502 110V AC 5VA 5/2 Solenoid Pilot Valve 1/4" NPTF
01VS150003N0601 01VS150003N0602 220V AC 5VA 5/2 Solenoid Pilot Valve 1/4" NPTF
01VS150005N0101 01VS150005N0102 12V DC 3W 5/2 Solenoid Pilot Valve 1/2" NPTF
01VS150005N0201 01VS150005N0202 24V DC 3W 5/2 Solenoid Pilot Valve 1/2" NPTF
01VS150005N0301 01VS150005N0302 24V DC 2W 5/2 Solenoid Pilot Valve 1/2" NPTF
01VS150005N0401 01VS150005N0402 24V AC 5VA 5/2 Solenoid Pilot Valve 1/2" NPTF
01VS150005N0501 01VS150005N0502 110V AC 5VA 5/2 Solenoid Pilot Valve 1/2" NPTF
01VS150005N0601 01VS150005N0602 220V AC 5VA 5/2 Solenoid Pilot Valve 1/2" NPTF
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
