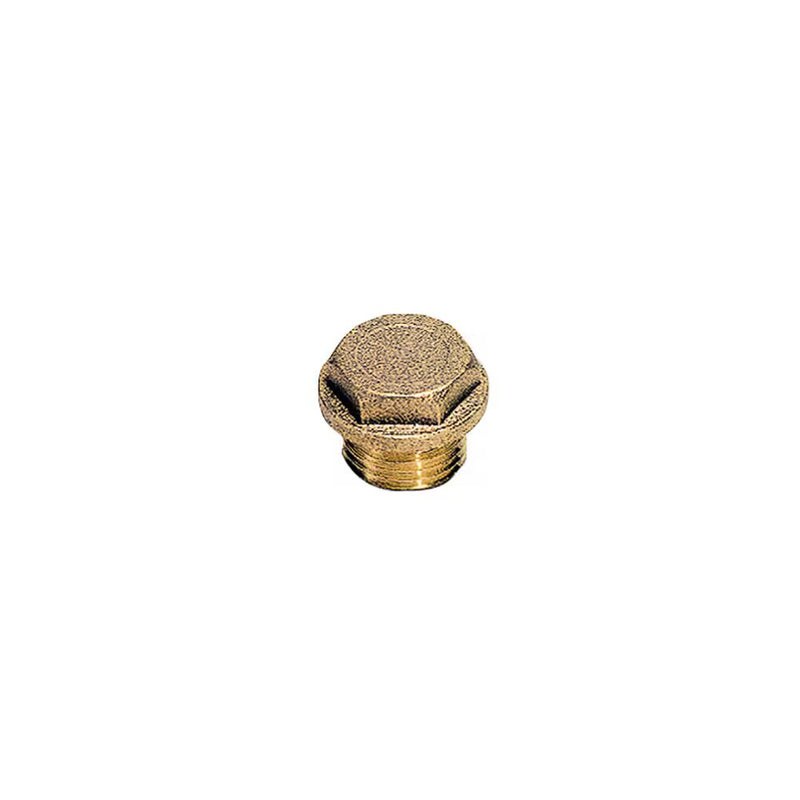

0201 92 00 by Parker | Legris Hex Head Plug w/ Collar | M24x2 Male M24 Metric Thread | 22 mm Hex | 17.5 mm Length | Brass

Save $2.21

$24.30

$24.30 - $24.30

$24.30

$22.09

$22.09 - $22.09

$22.09

by Parker Hannifin
Brass Plugs:0201 Hex Head Plug with Collar, Male BSPP and Metric Thread

Quantity

Specifications for Variant SKU: 0201 92 00 Parker
Series:	0201 Series
Shape (Orientation):	No Orientation
Material(s):	Brass


Adapters and Manifolds:


Part Number	C	E	F	G	H1	H2	Kg
0201 75 00	M8x1.5	10 mm	17 mm	22 mm	6.5 mm	5 mm	.025 Kg
0201 78 00	M18x1.5	10 mm	17 mm	24 mm	7 mm	5 mm	.026 Kg
0201 92 00	M24x2	10 mm	22 mm	32 mm	7.5 mm	5 mm	.046 Kg
0201 27 00	3/4"	11 mm	22 mm	31.7 mm	8.5 mm	5 mm	.025 Kg
0201 34 00	1/2"	11 mm	27 mm	39.7 mm	8.5 mm	7 mm	.087 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
