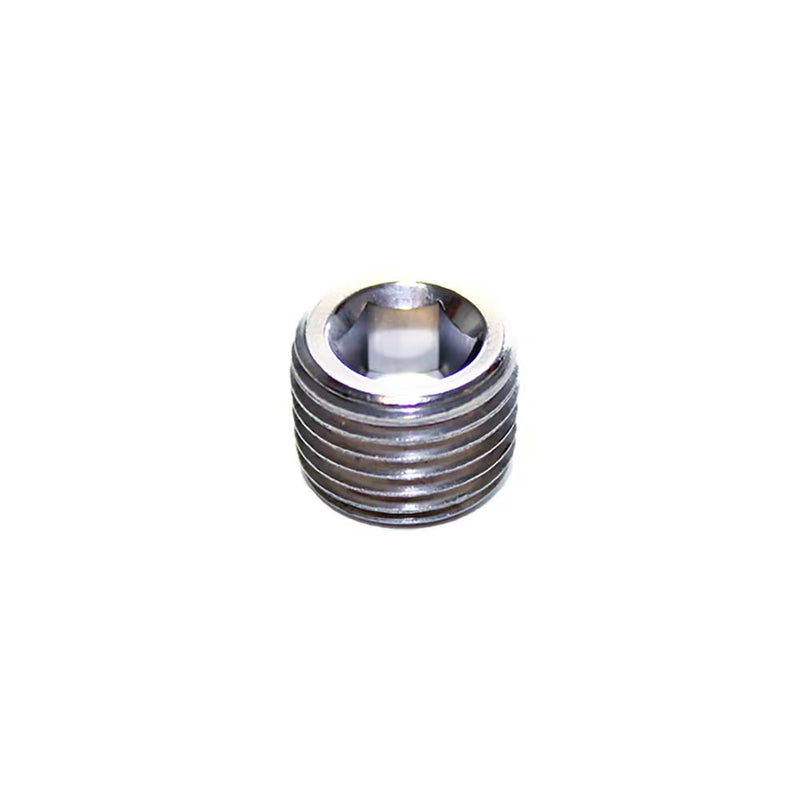

0285 18 00 by Parker | Legris Internal Hex Head Plug | 3/8" Male NPT Thread | 8 mm Hex | 11 mm Length | 316L Stainless Steel | Pack of 5

Save $140.93

$352.33

$352.33 - $352.33

$352.33

$211.40

$211.40 - $211.40

$211.40

by Parker Hannifin
Stainless Steel Plugs:0285 Internal Hexagon Head Plug, Male NPT Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 0285 18 00 Parker \| 5 \|
Series:	0285 Series
Shape (Orientation):	No Orientation
Material(s):	316L Stainless Steel


Adapters and Manifolds:


Part Number	C	E1	E2 (max)	E3 (min)	F	G	H	Kg
0285 11 00	1/8"	6 mm	5 mm	3.2 mm	5 mm	10.2 mm	8 mm	.003 Kg
0285 14 00	1/4"	8 mm	7.2 mm	4.4 mm	6 mm	13.6 mm	10 mm	.007 Kg
0285 18 00	3/8"	8 mm	7.5 mm	4.7 mm	8 mm	17 mm	11 mm	.013 Kg
0285 22 00	1/2"	8 mm	9.9 mm	6.3 mm	10 mm	21 mm	13 mm	.025 Kg

Conforms to ANSI B1.20.1

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
