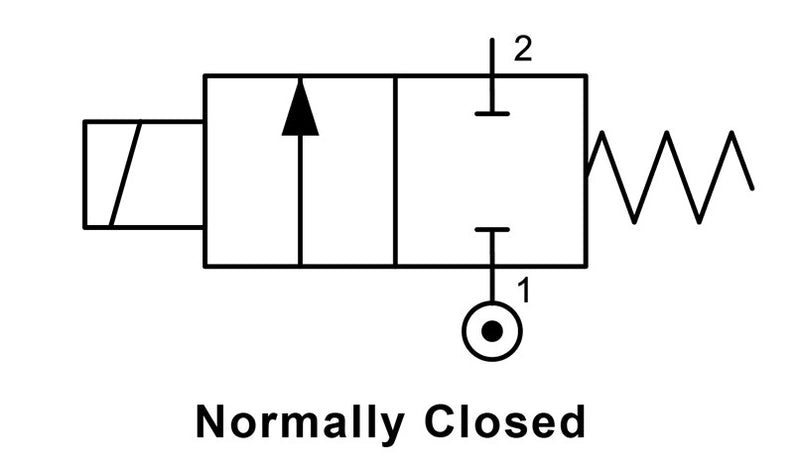

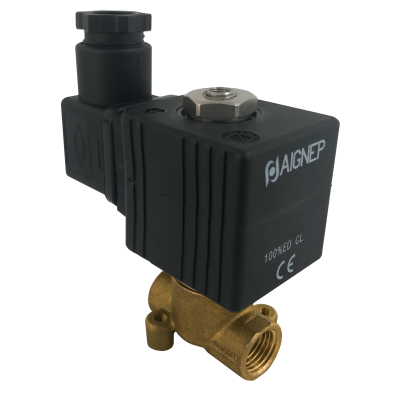

02F03102N0N10201 AIGNEP | Fluidity Series | Fluidity 02F Direct | Acting Solenoid Valve | 2/2 Normally Closed | NBR Seal | 1/4" NPTF | 2 mm | 12V DC

02F03102N0N10201 by AIGNEP | Fluidity Series | Fluidity 02F Direct | Acting Solenoid Valve | 2/2 Normally Closed | 1/4" NPTF | 2 mm | 12V DC | NBR Seal

Save $26.32

$65.80

$65.80 - $65.80

$65.80

$39.48

$39.48 - $39.48

$39.48

Specifications for Variant SKU: 02F03102N0N10201 AIGNEP
Series:	Fluidity Series
Ends Configuration:	1/4in Female NPTF, 1/4in Female NPTF, Some Ends Match
Material(s):	Plastic
Seal Material(s):	Buna-N/Nitrile Rubber

General features - 02F:	• Operator kit Ø 13 mm • ATEX II 2G/D Ex h certification • Coils: Class H	Applications:	• Water, Neutral liquids, Oils • Car washes, Washing systems • Industrial processes, Tank draining • Air and Inert gases • Vacuum, Packaging • Oxygen, Steam, Medical, Sterilizers
Temperature Range:	14°F + 284°F (- 10 °C +140°C)	Materials and Components:	• Body: Brass CW617N • Seals: NBR (Serie C) - EPDM (Serie D) - FKM (Serie E) • Armature tube: Stainless steel • Fixed and mobile core: Stainless steel AISI 430FR • Springs: Stainless steel

Part Number (12V DC)	Part Number (24V DC) (12V AC)	Part Number (110V AC)	Part Number (220V AC)	Sealing Material	Temperature	Port Size	Ø Orifice	Viscosity (cSt)	Kv (m³/h)	OPD - DC (8 W)	OPD - DC (14 W)	OPD - DC (22 W)	OPD - AC (14 VA)	OPD - AC (21 VA)	OPD - AC (31 VA)
02F03102E0N10201	02F03102E0N20201 02F03102E0N30901	02F03102E0N40901	02F03102E0N50901	EPDM	14°F + 284°F (-10°C +140°C)	1/4"	2 mm	37 cSt	0.10 m³/h	0 - 35 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar
02F03102N0N10201	02F03102N0N20201 02F03102N0N30901	02F03102N0N40901	02F03102N0N50901	NBR	14°F + 194°F (-10°C +90°C)	1/4"	2 mm	37 cSt	0.10 m³/h	0 - 35 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar
02F03102V0N10201	02F03102V0N20201 02F03102V0N30901	02F03102V0N40901	02F03102V0N50901	FKM	14°F + 284°F (-10°C +140°C)	1/4"	2 mm	37 cSt	0.10 m³/h	0 - 35 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar	0 - 50 bar
