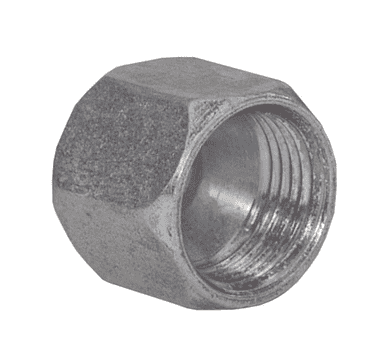

0304C-32 Dixon Zinc Plated Steel JIC Cap - 2-1/2"-12 JIC Cap Nut - 2" Tube OD

0304C-32 Dixon Valve Zinc Plated Steel JIC Cap - 2-1/2"-12 JIC Cap Nut - 2" Tube OD

Save $14.39 Save $14.39
$35.98
$35.98 - $35.98
$35.98
$21.59
$21.59 - $21.59
$21.59

SAE / JIC Fittings - JIC Caps - Zinc Plated Steel
Specifications for Variant SKU: 0304C-32 Dixon
Ends Configuration: 2in Female JIC
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 070112.
Part Number JIC Cap Nut Tube OD Working Pressure Weight (Lbs.)
0304C-2 5/16"-24 1/8" 5000 PSI 0.0010
0304C-4 7/16"-20 1/4" 5000 PSI 0.0200
0304C-6 9/16"-18 3/8" 5000 PSI 0.0400
0304C-8 3/4"-16 1/2" 4500 PSI 0.0800
0304C-10 7/8"-14 5/8" 3500 PSI 0.1100
0304C-12 1-1/16"-12 3/4" 3500 PSI 0.1950
0304C-16 1-5/16"-12 1" 3000 PSI 0.2700
0304C-20 1-5/8"-12 1-1/4" 2500 PSI 0.5930
0304C-24 1-7/8"-12 1-1/2" 2000 PSI 0.7820
0304C-32 2-1/2"-12 2" 1500 PSI 1.3070
