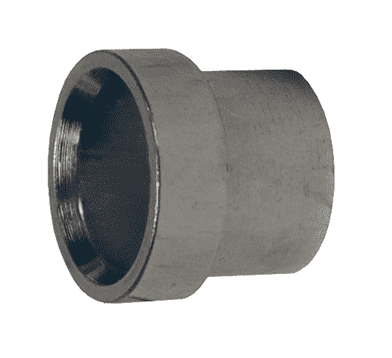

0319-4 Dixon Zinc Plated Steel Tube Sleeve - 7/16"-20 JIC 37 deg.

0319-4 Dixon Valve Zinc Plated Steel Tube Sleeve - 7/16"-20 JIC 37 deg.

Save $0.07 Save $0.07
$0.60
$0.60 - $0.60
$0.60
$0.53
$0.53 - $0.53
$0.53



SAE / JIC Fittings - Tube Sleeves - Zinc Plated Steel
Specifications for Variant SKU: 0319-4 Dixon
Shape (Orientation): No Orientation
Material(s): Zink-Plated Steel
Features:
  • N/A.
Part Number JIC 37 deg. Working Pressure Weight (Lbs.)
0319-4 7/16"-20 5000 PSI N/A
0319-6 9/16"-18 5000 PSI N/A
0319-8 3/4"-16 4500 PSI 0.0200
0319-10 7/8"-14 3500 PSI N/A
0319-12 1-1/16"-12 3500 PSI N/A
0319-16 1-5/16"-12 3000 PSI N/A
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
