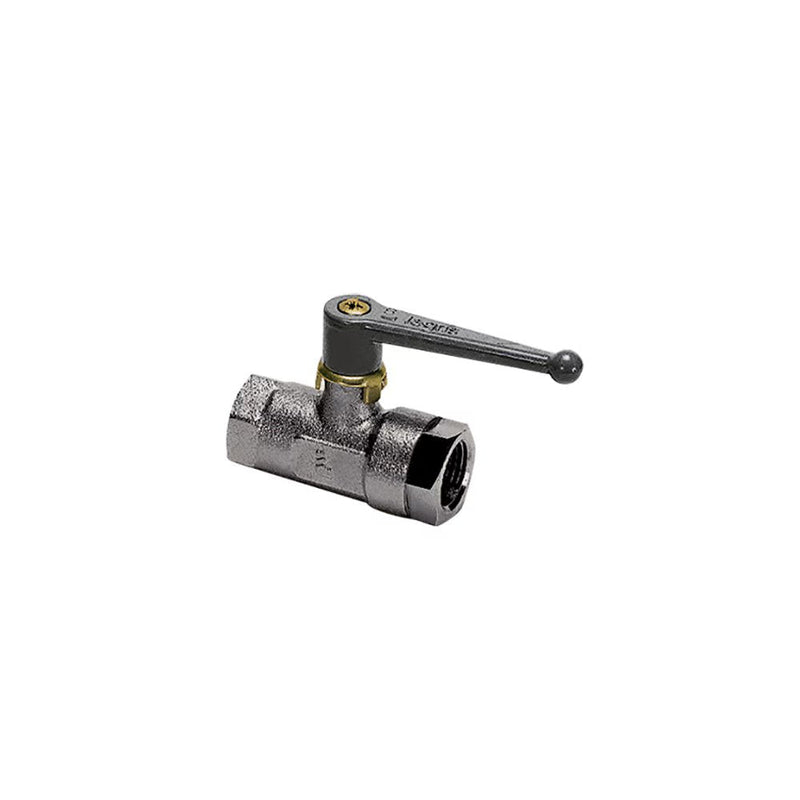

0402 32 42 by Parker | Legris In-Line Ball Valve | 1-1/4" Female BSPP Thread | 55 mm Hex | 60 mm Hex | 115 mm Valve Length | Straight | Nickel-Plated Brass

Save $8.31

$457.16

$457.16 - $457.16

$457.16

$448.85

$448.85 - $448.85

$448.85

by Parker Hannifin
Universal Series:0402 2/2 In-Line Ball Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 0402 32 42 Parker
Series:	0402 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	H1	L	L1	M	Kg
0402 04 10	4 mm	1/8"	8 mm	-	14 mm	35 mm	29 mm	44 mm	25 mm	48 mm	.094 Kg
0402 07 10	7 mm	1/8"	8 mm	19 mm	19 mm	38 mm	31 mm	51 mm	27 mm	48 mm	.165 Kg
0402 07 13	7 mm	1/4"	12 mm	19 mm	19 mm	38 mm	31 mm	53 mm	28 mm	48 mm	.156 Kg
0402 10 17	10 mm	3/8"	12 mm	24 mm	24 mm	45 mm	43 mm	59 mm	31 mm	69 mm	.244 Kg
0402 13 21	13 mm	1/2"	15 mm	27 mm	27 mm	47 mm	44 mm	67 mm	34 mm	69 mm	.292 Kg
0402 20 27	20 mm	3/4"	16.5 mm	32 mm	38 mm	63 mm	54 mm	80 mm	39 mm	108 mm	.655 Kg
0402 23 34	23 mm	1"	19 mm	41 mm	46 mm	67 mm	57 mm	94 mm	47 mm	108 mm	.1.036 Kg
0402 32 42	32 mm	1-1/4"	21.5 mm	55 mm	60 mm	97 mm	115 mm	112 mm	59 mm	180 mm	2.467 Kg
0402 40 48	40 mm	2"	26 mm	70 mm	70 mm	104 mm	-	122 mm	61 mm	190 mm	2.614 Kg

*Models with EC marking
Maximum working pressure: 40 bar
